Pallet Flow

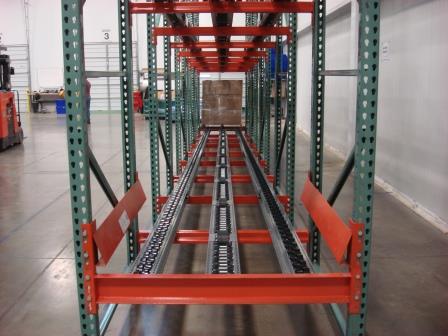

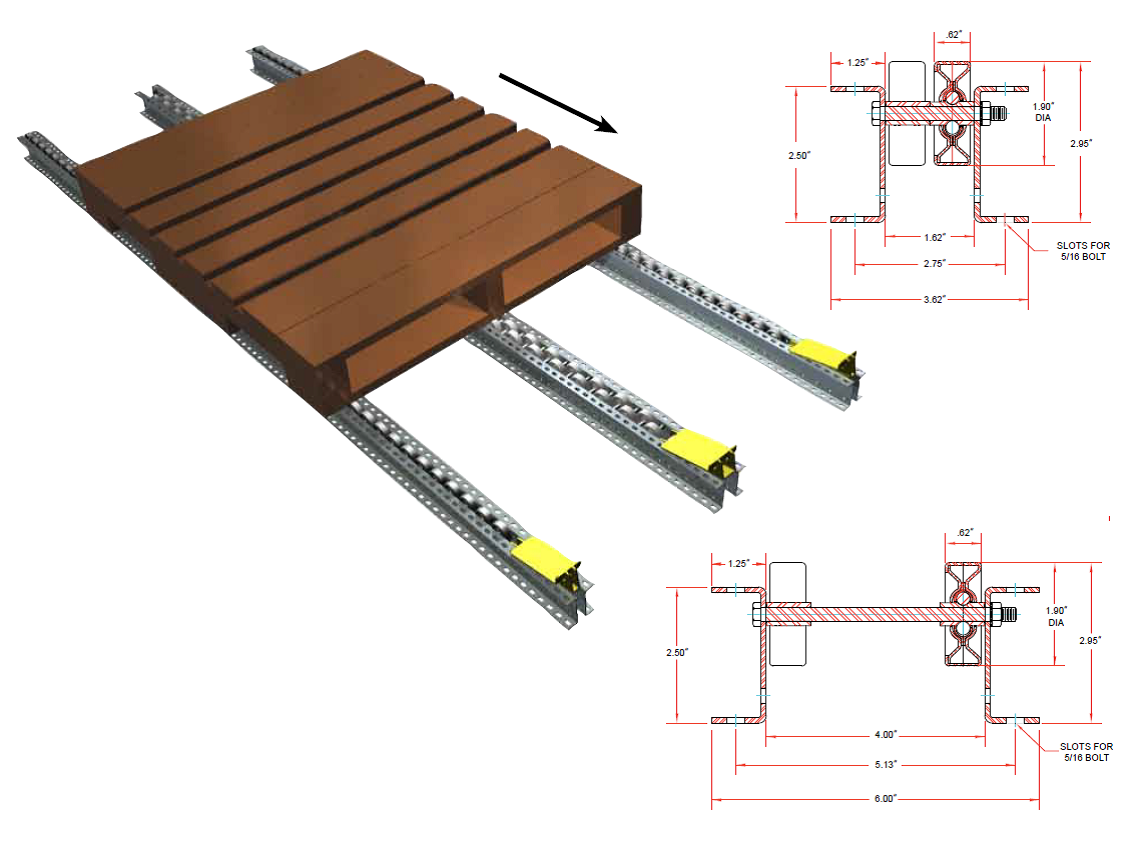

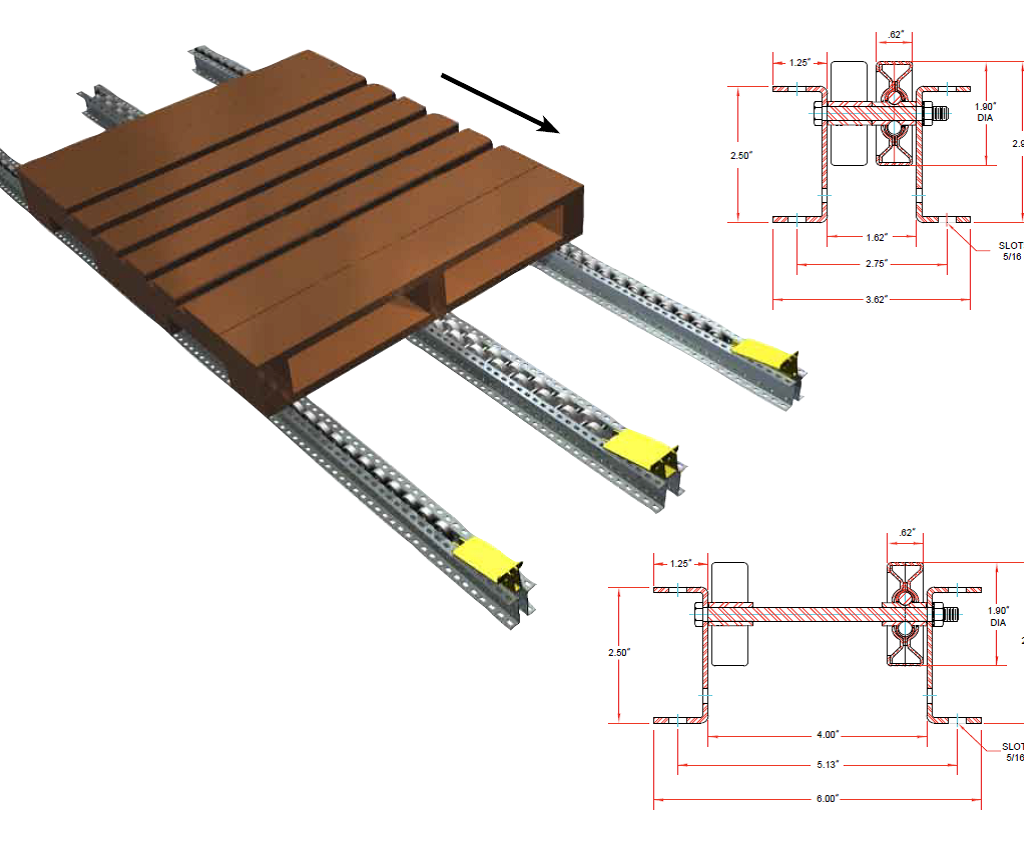

Skate Wheel
Product Features
- Inexpensive solution for picking applications
- Often used in multi-tier modules
- Suitable for 1-4 deep pallet storage only

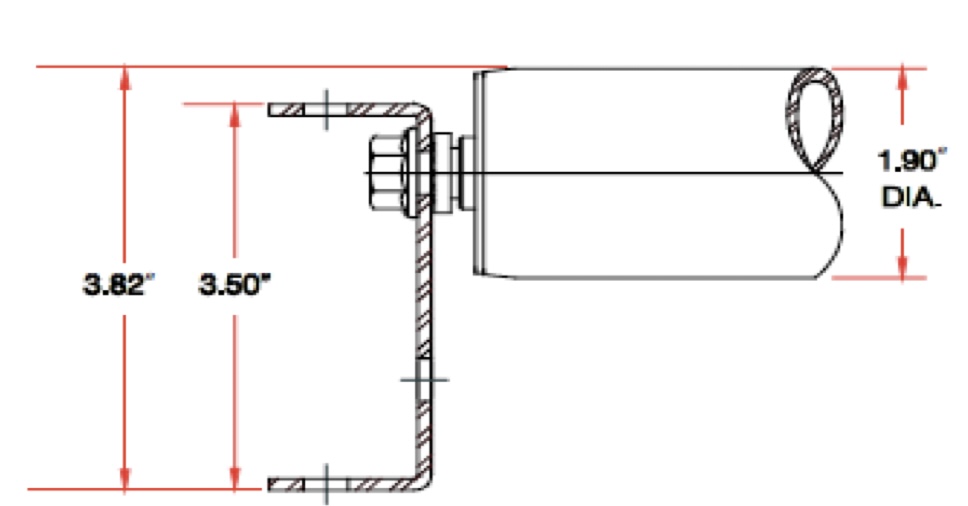

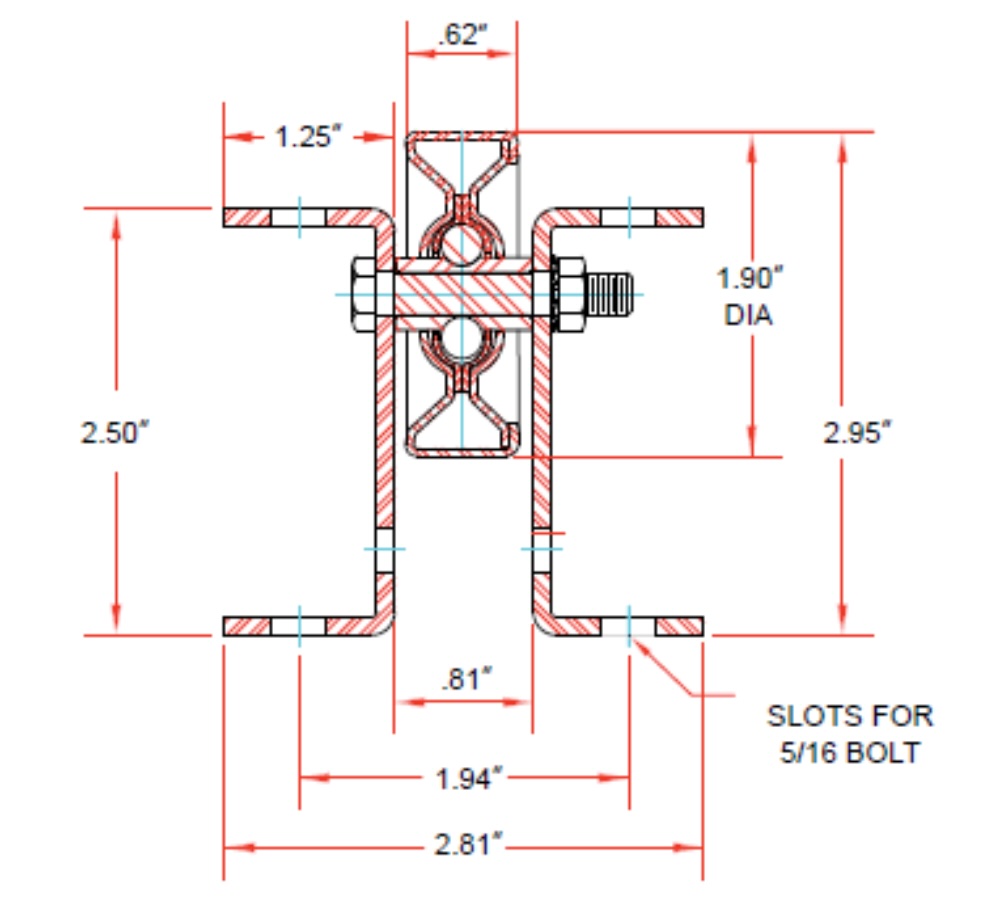

- 1.9" diameter wheels with sealed steel bearings on 1.5" ', 2" or 3" centers
- 2500 lb individual pallet capacity
- Speed controllers can be mounted in 4" BFR tracks
- Pallet stops standard
- Optional pallet separators available
- Optional pawl stops to prevent backward flow
- Usable in freezers and chillers down to -22°F
- Suitable for push-back applications

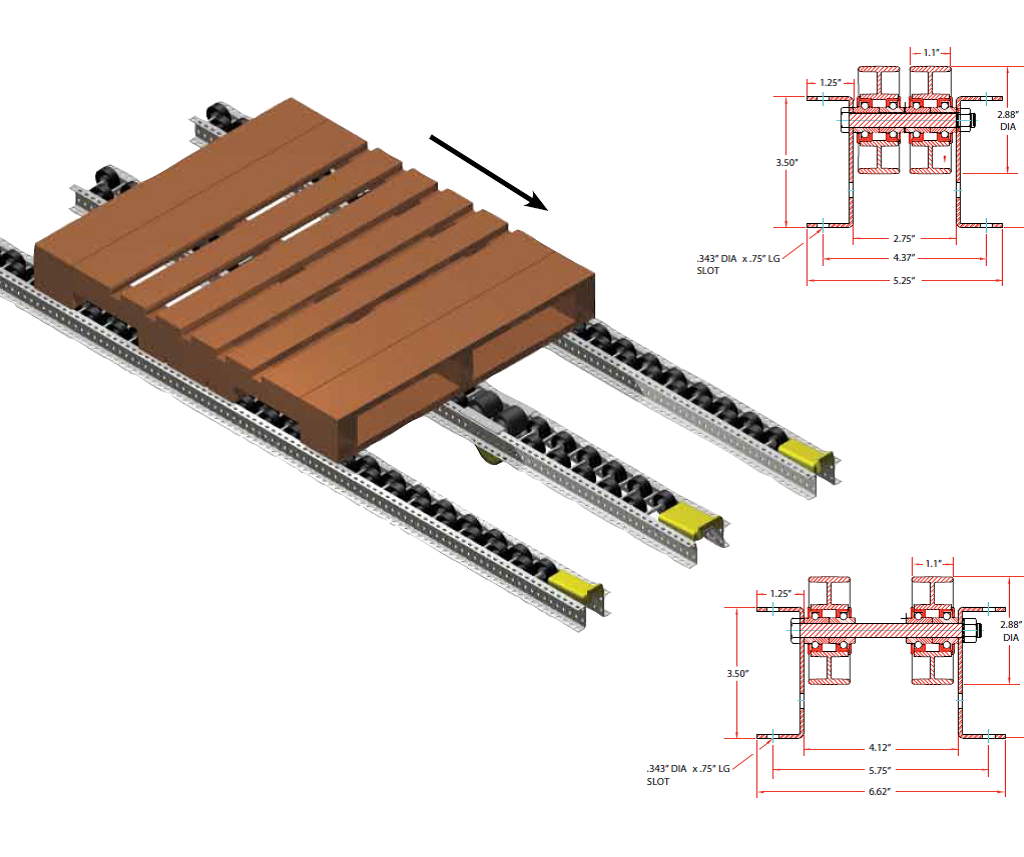

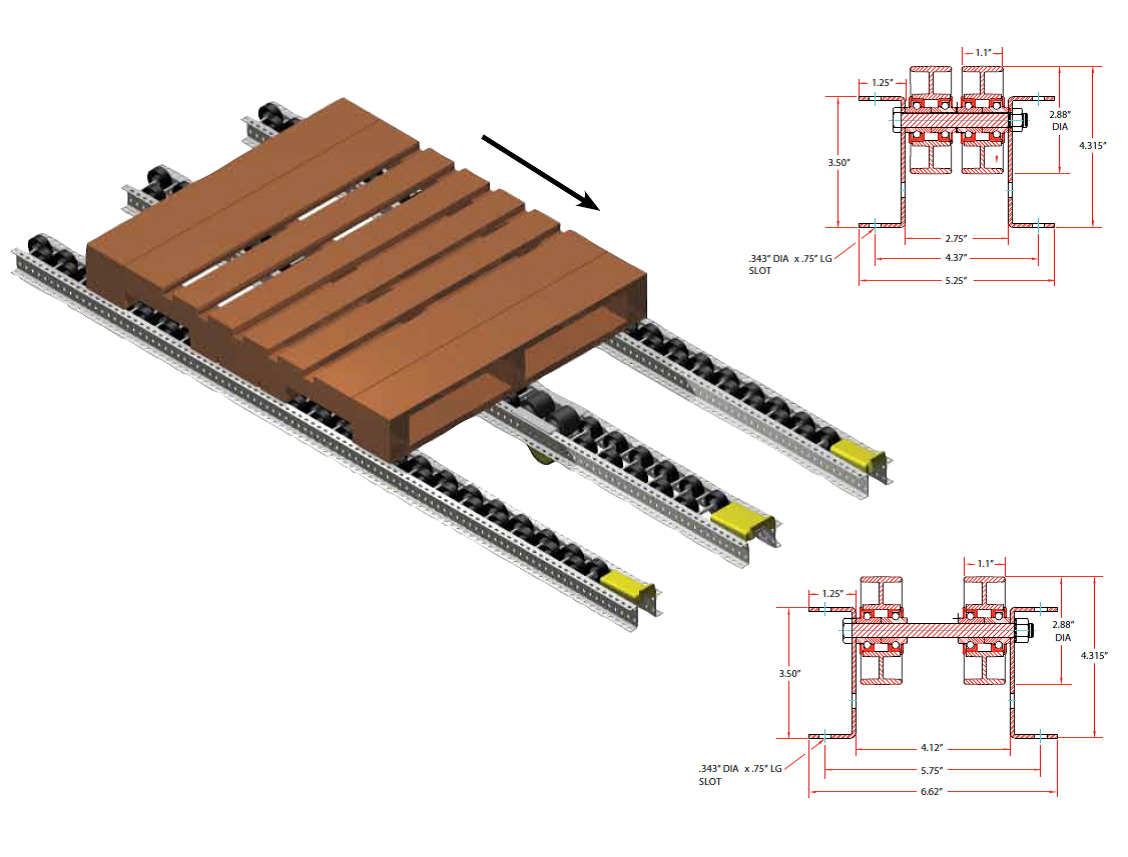

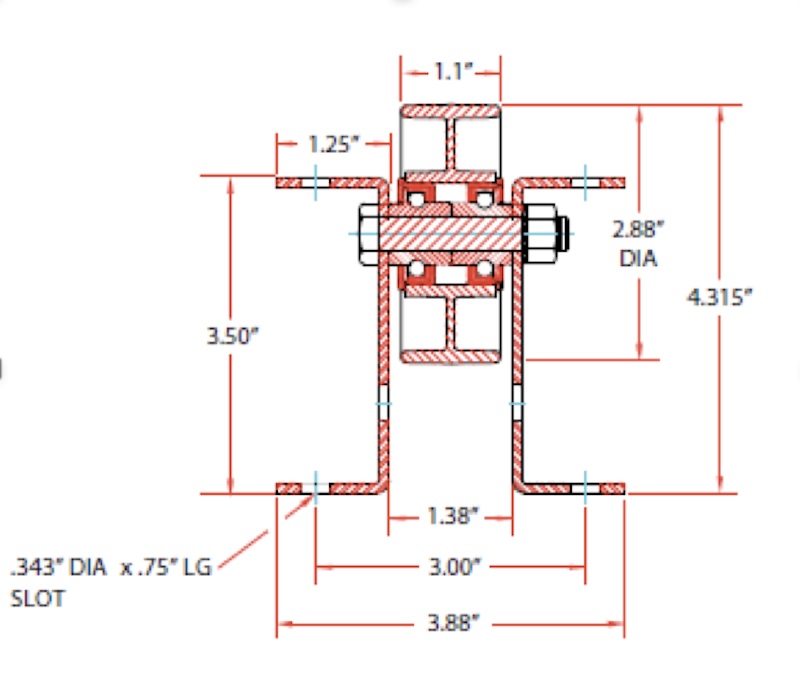

Plastic Wheel
Product Features
- Used to handle all perpendicular flowing euro, plastic and steel pallets in deep lane storage applications
- Often different pallet types and sizes can be conveyed in a single lane
- Can be designed as a single full with lane or multiple smaller tracks
- Systems installed up to 32 pallets deep
- 1.9", 2.5" or 3.15" diameter rollers with commercial grade bearings and stub shafts
- Speed controllers can be mounted in 4" BFR tracks
- 4000 lb individual pallet capacity
- Speed controllers can be mounted either in-line or under rollers
- Pallet stops offered as standard
- Optional pallet separators
- Optional pawl stops to prevent backward flow
- Usable in freezers and chillers down to -40°F
- Longer lane lengths require in-field splicing
- Can be used for push-back applications with patented one-way speed controller

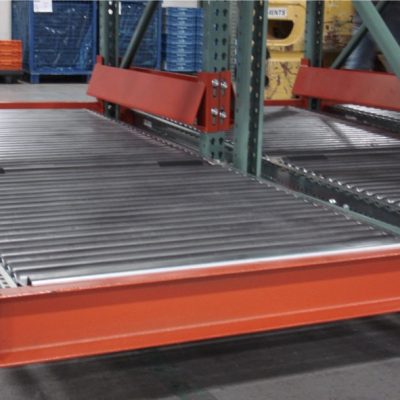

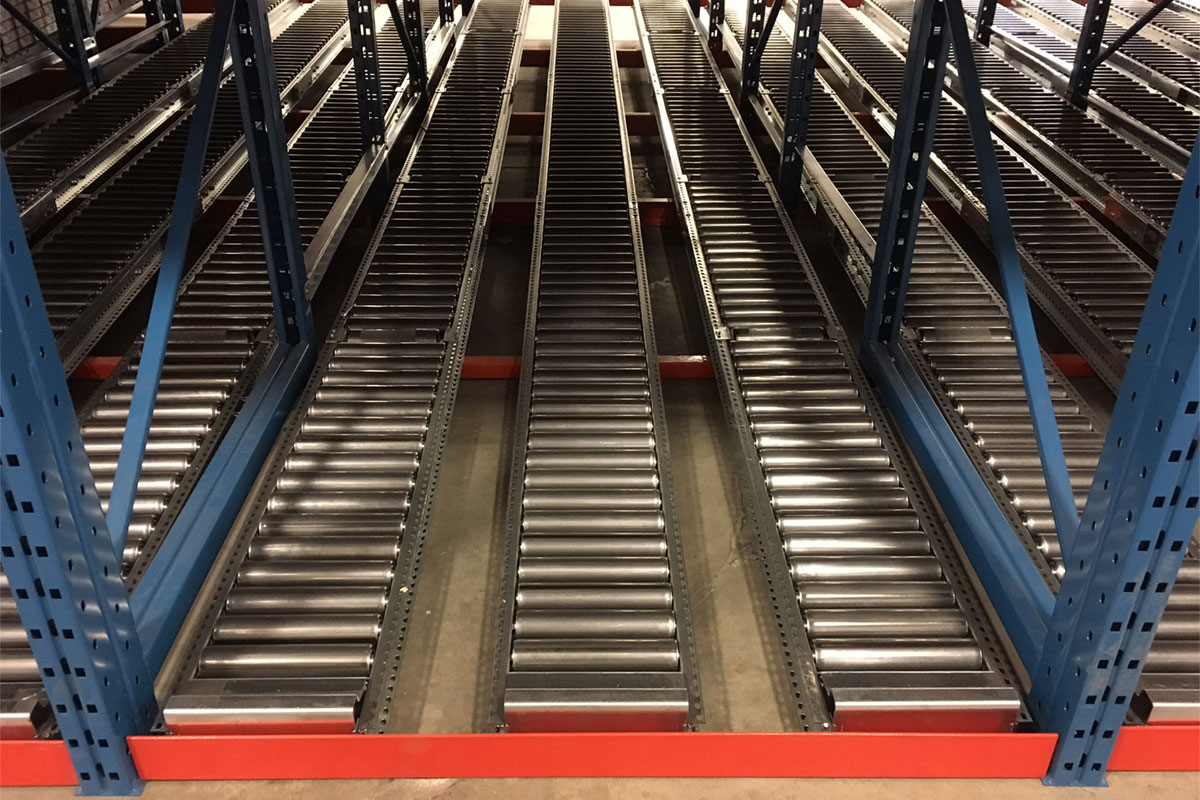

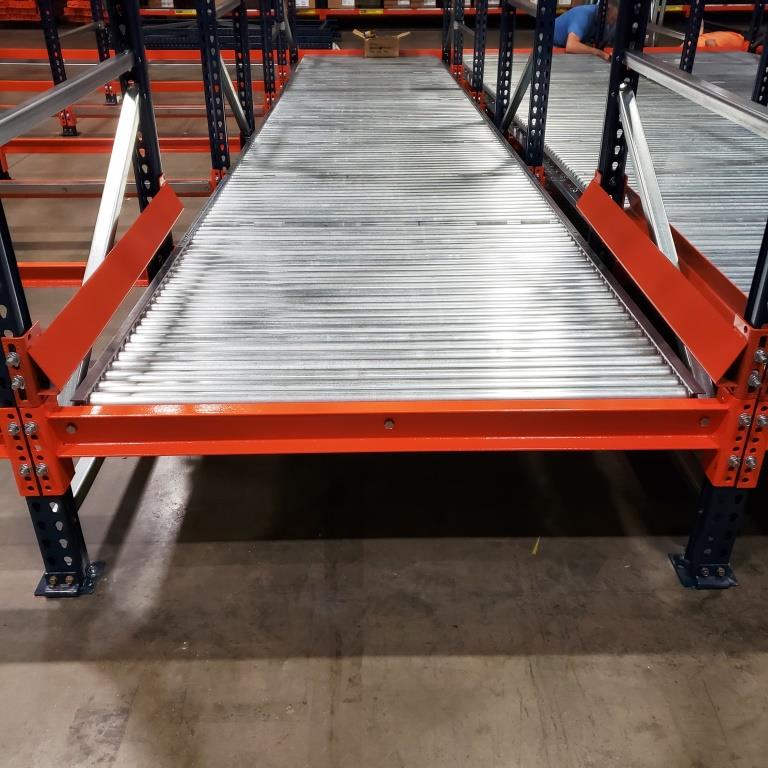

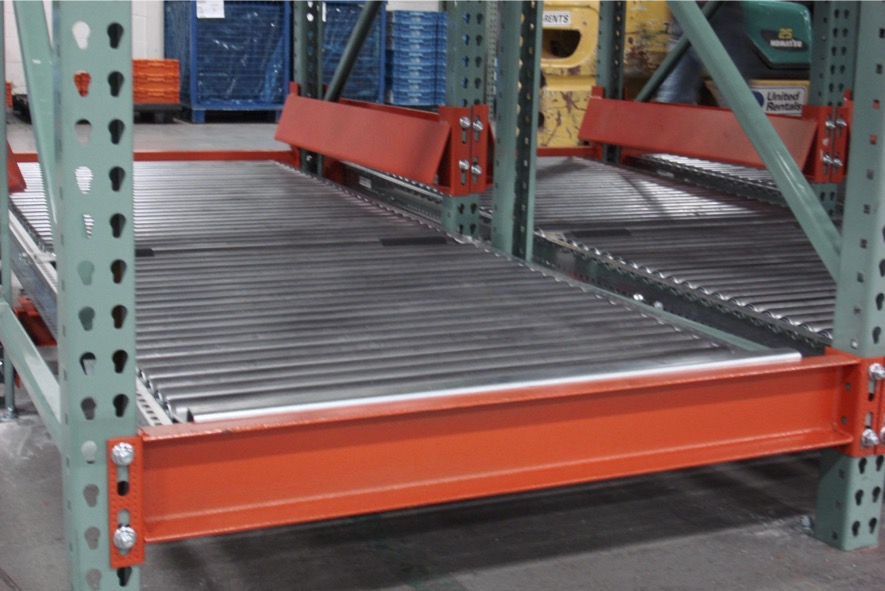

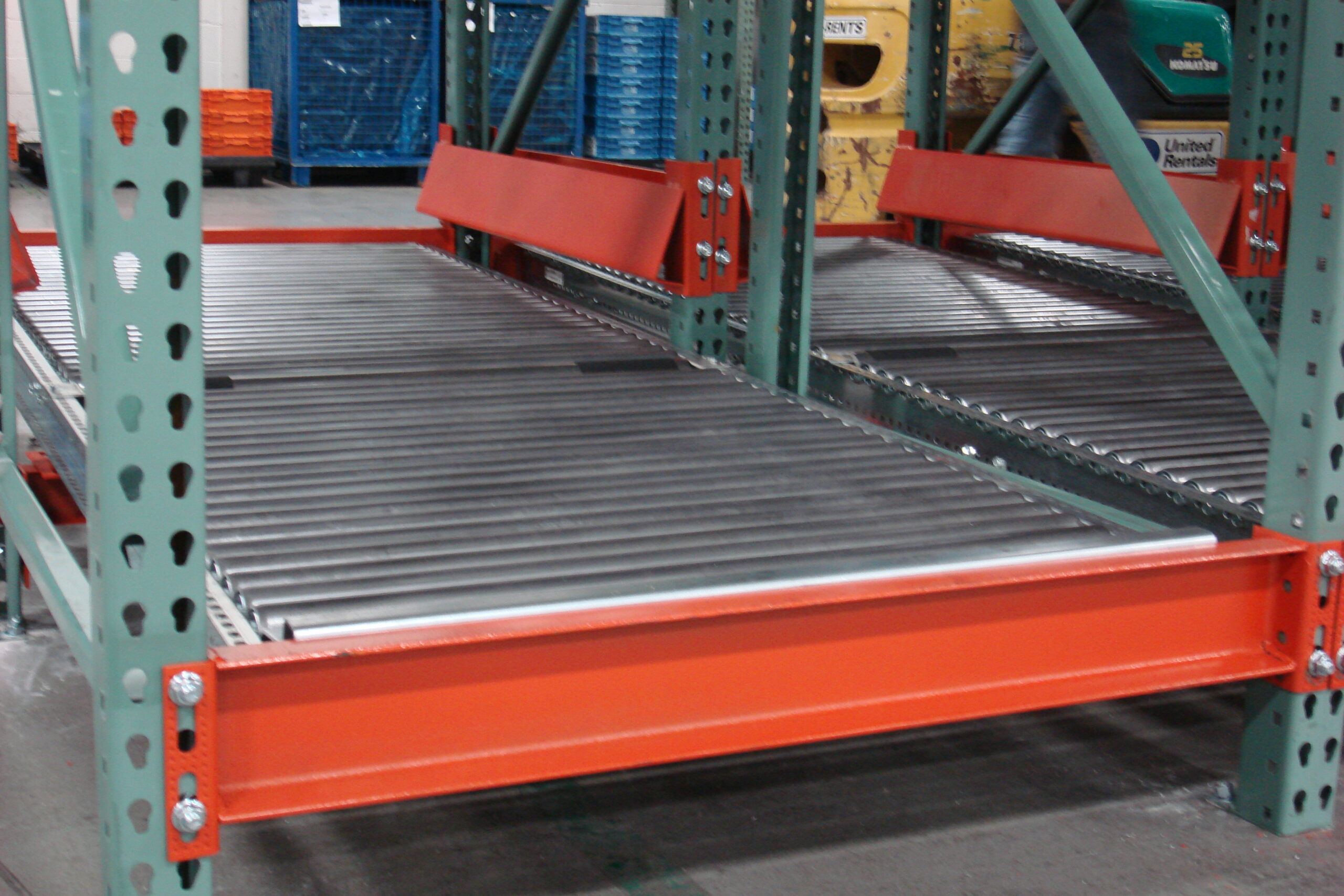

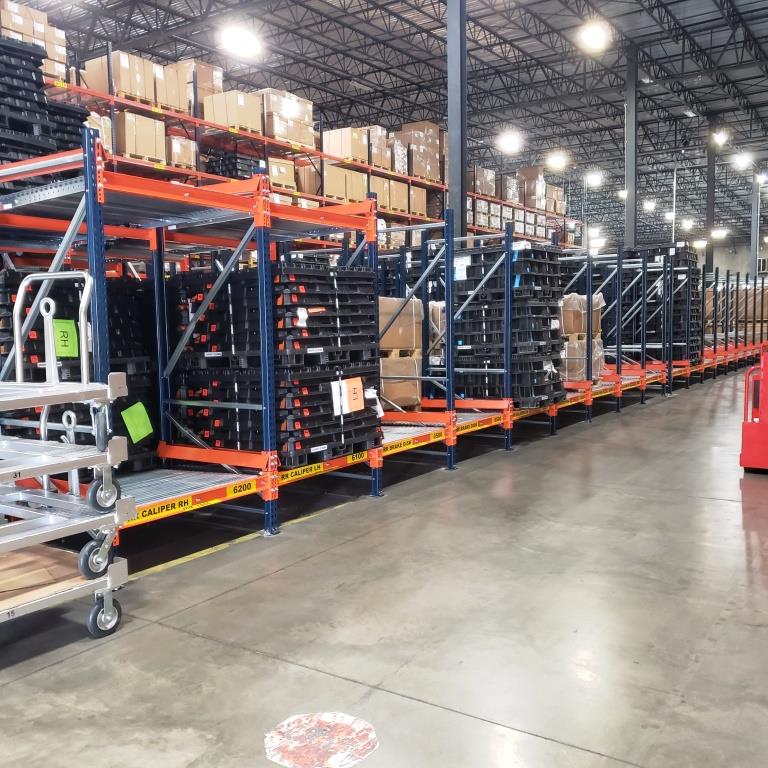

Wide Roller
Product Features
- Used to handle all perpendicular flowing euro, plastic and steel pallets in deep lane storage applications
- Often different pallet types and sizes can be conveyed in a single lane
- Can be designed as a single full with lane or multiple smaller tracks
- Systems installed up to 32 pallets deep

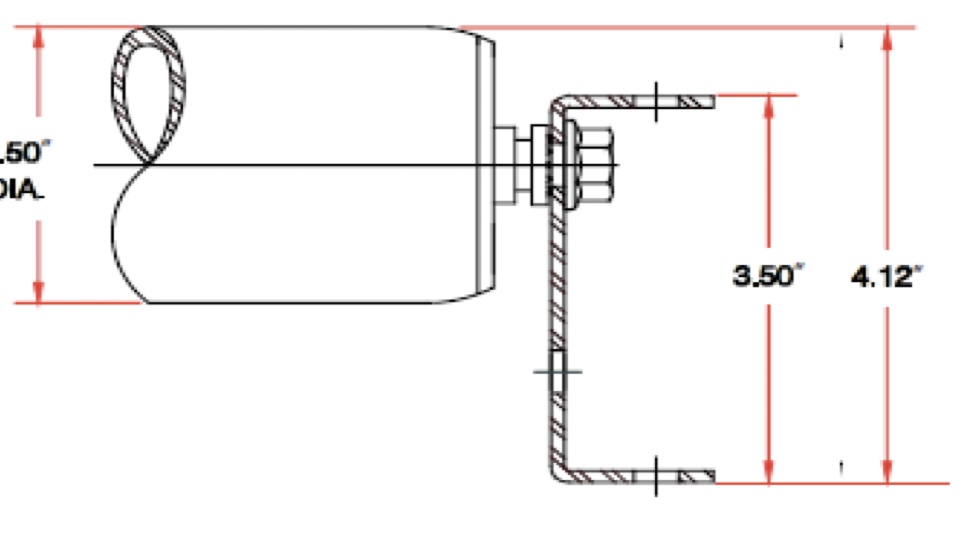

- 1.9", 2.5" or 3.15" diameter rollers with commercial grade bearings and stub shafts
- Speed controllers can be mounted in 4" BFR tracks
- 4000 lb individual pallet capacity
- Speed controllers can be mounted either in-line or under rollers
- Pallet stops offered as standard
- Optional pallet separators
- Optional pawl stops to prevent backward flow
- Usable in freezers and chillers down to -40°F
- Longer lane lengths require in-field splicing
- Can be used for push-back applications with patented one-way speed controller
