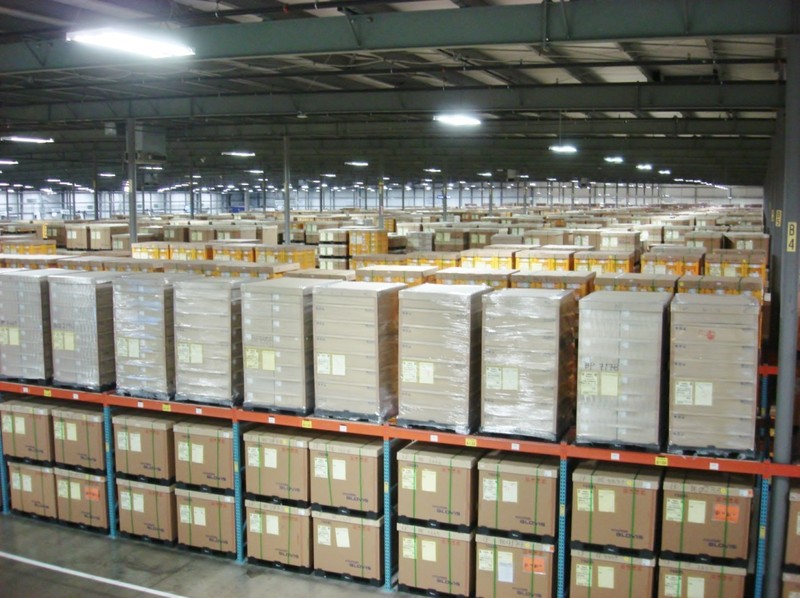

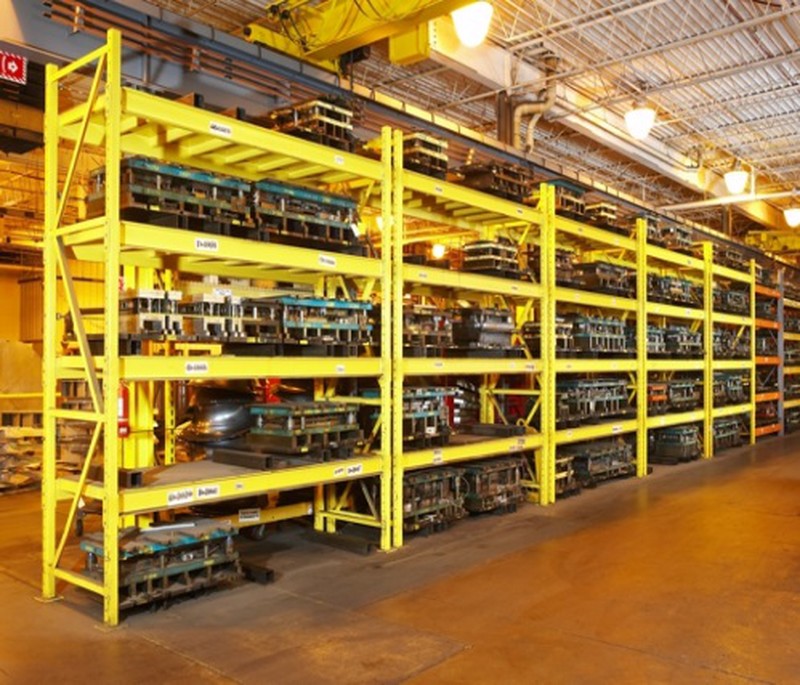

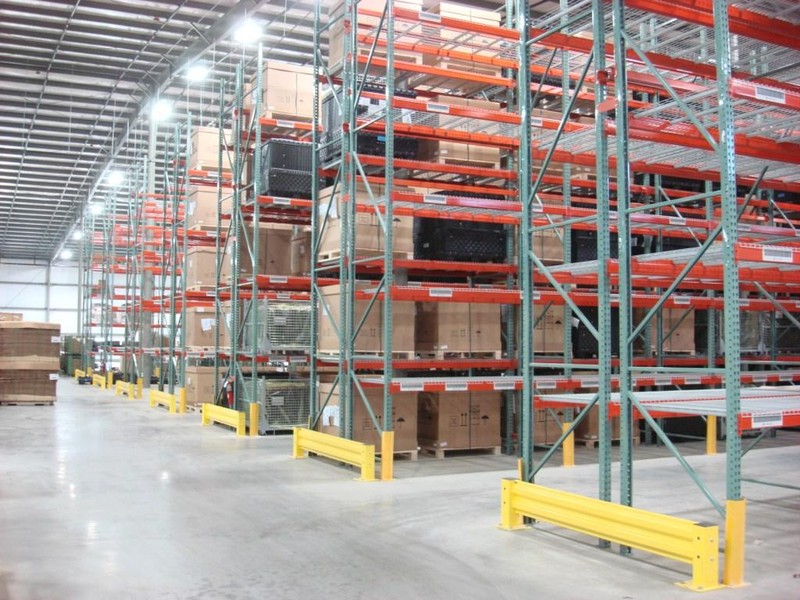

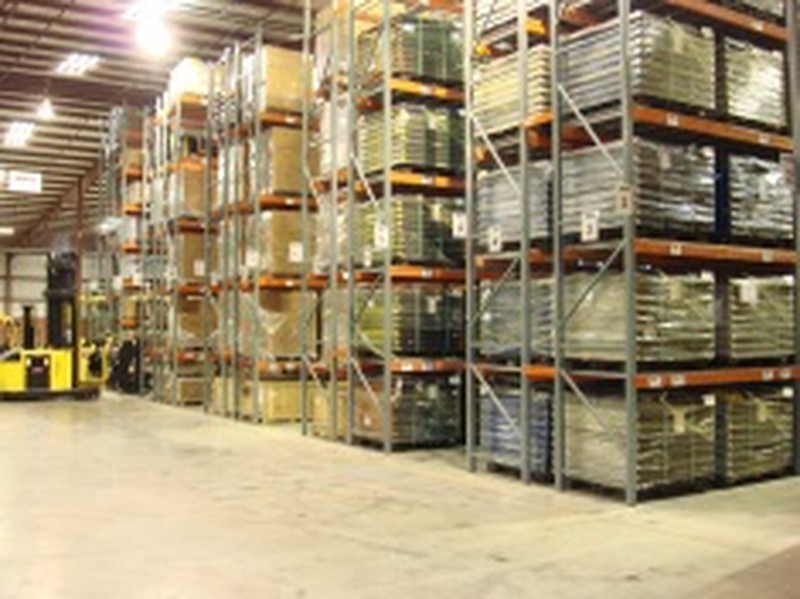

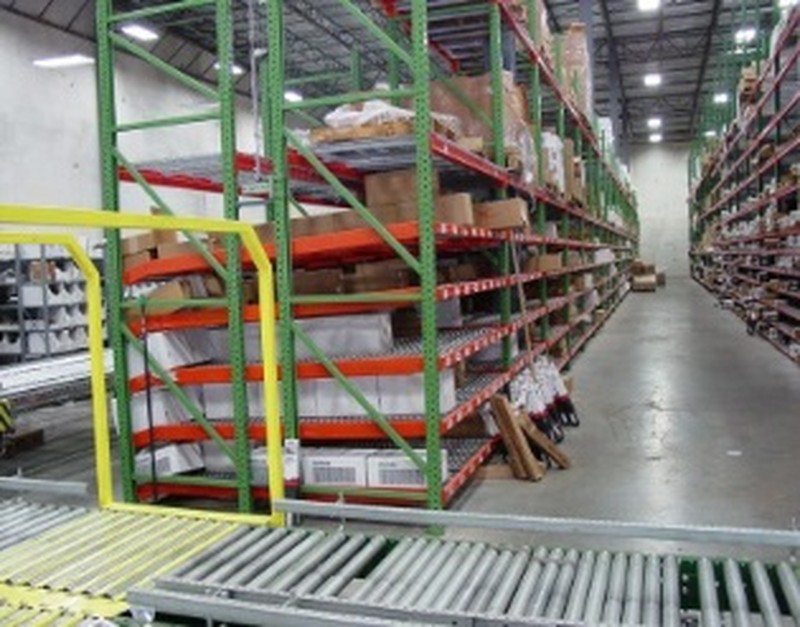

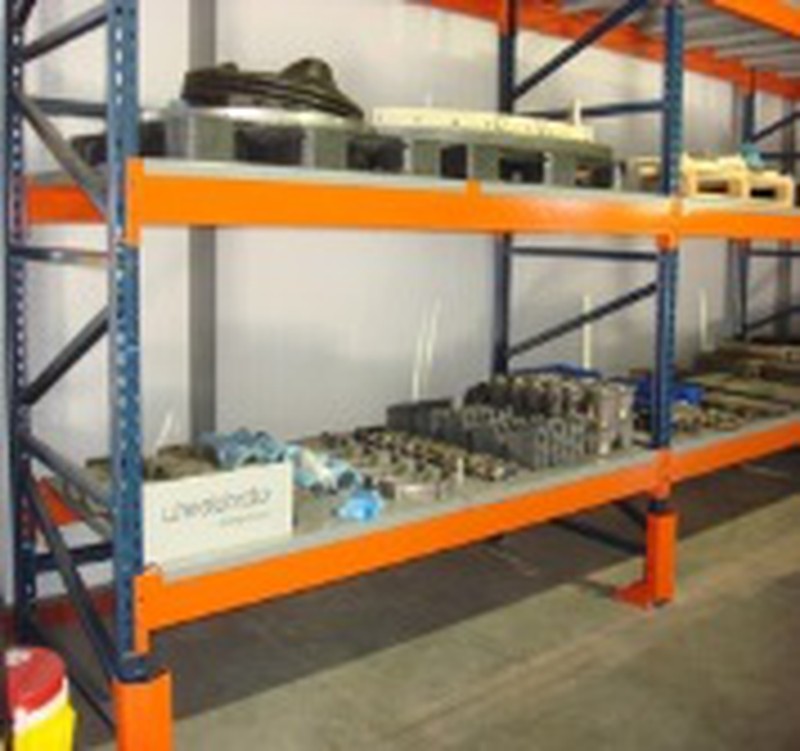

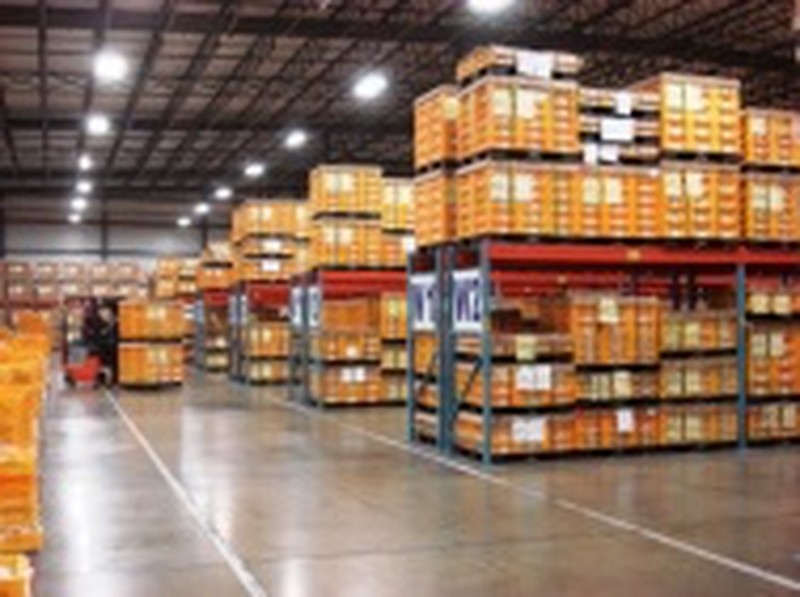

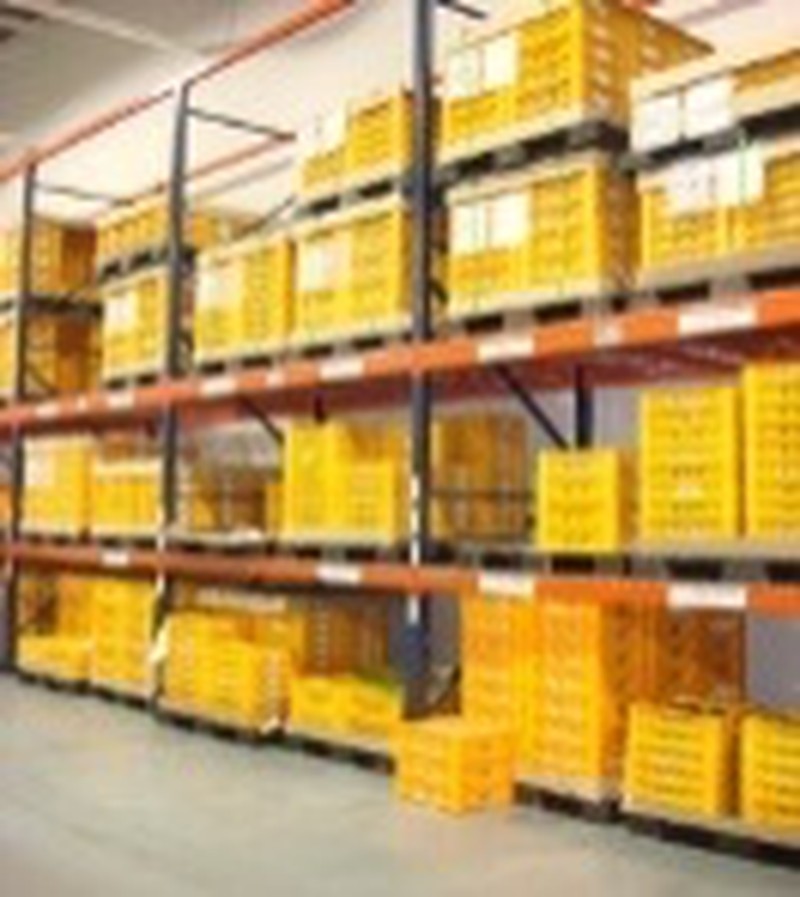

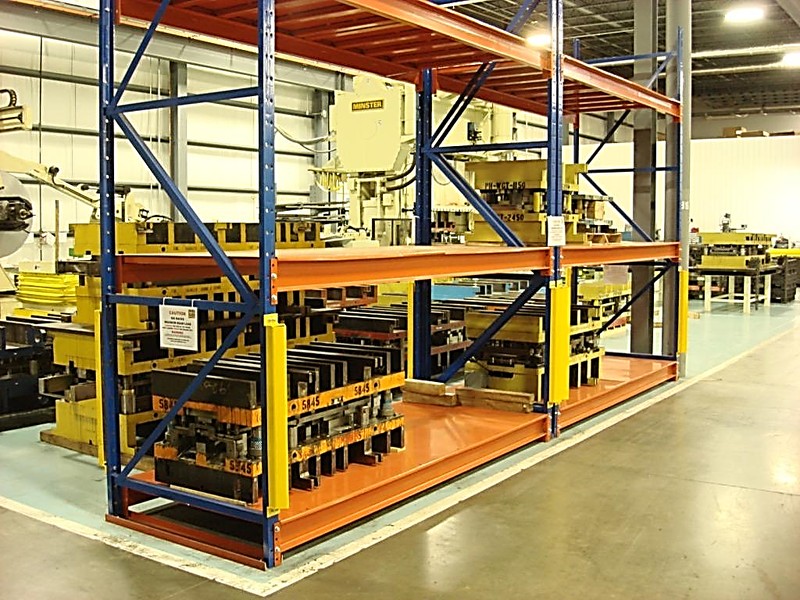

Pallet Racks

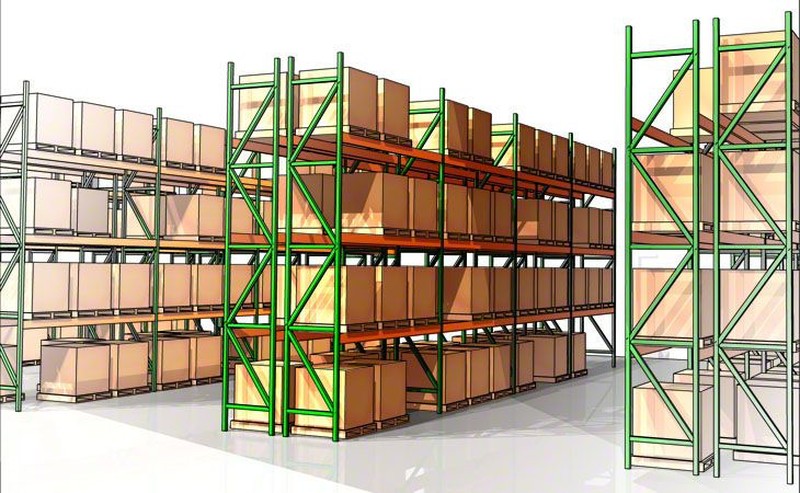

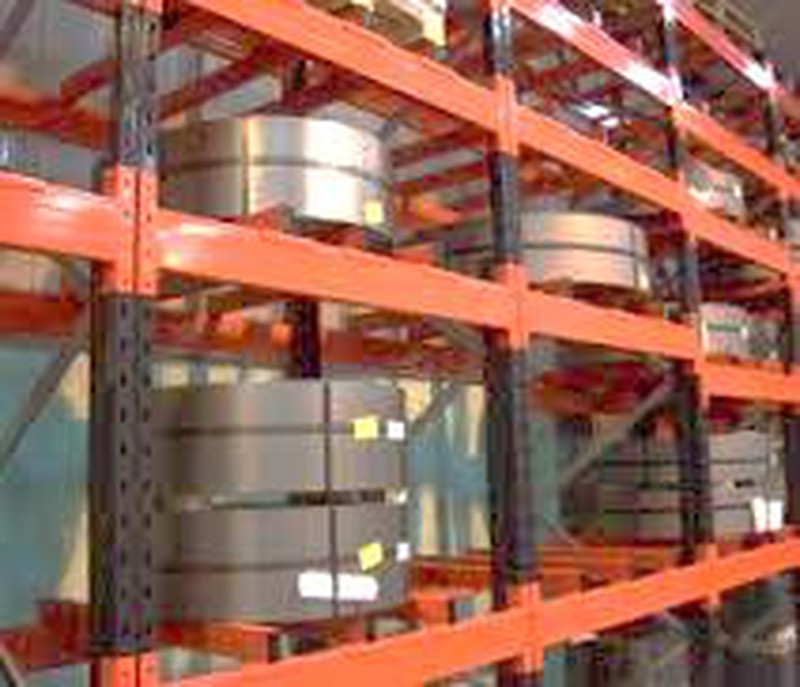

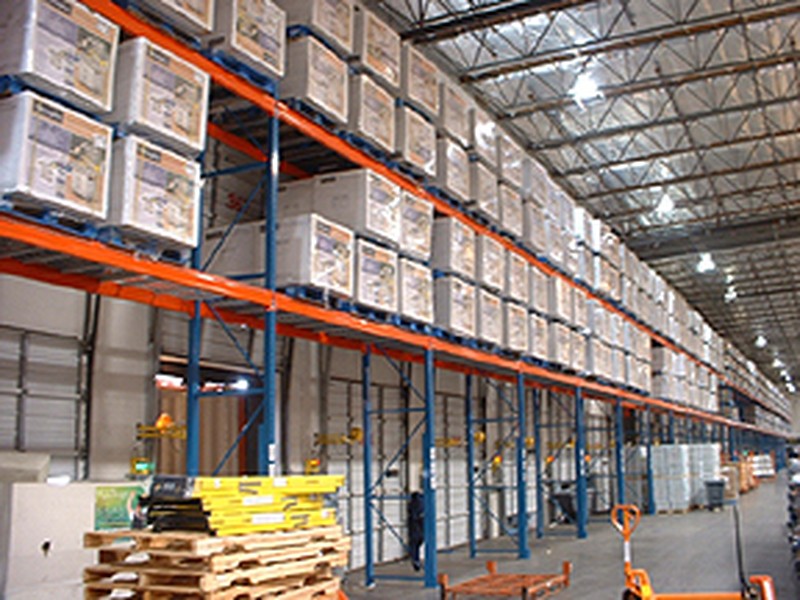

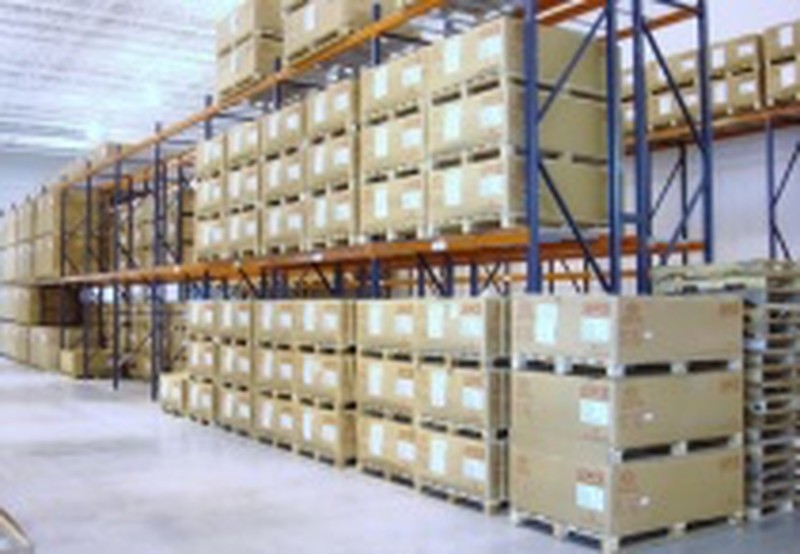

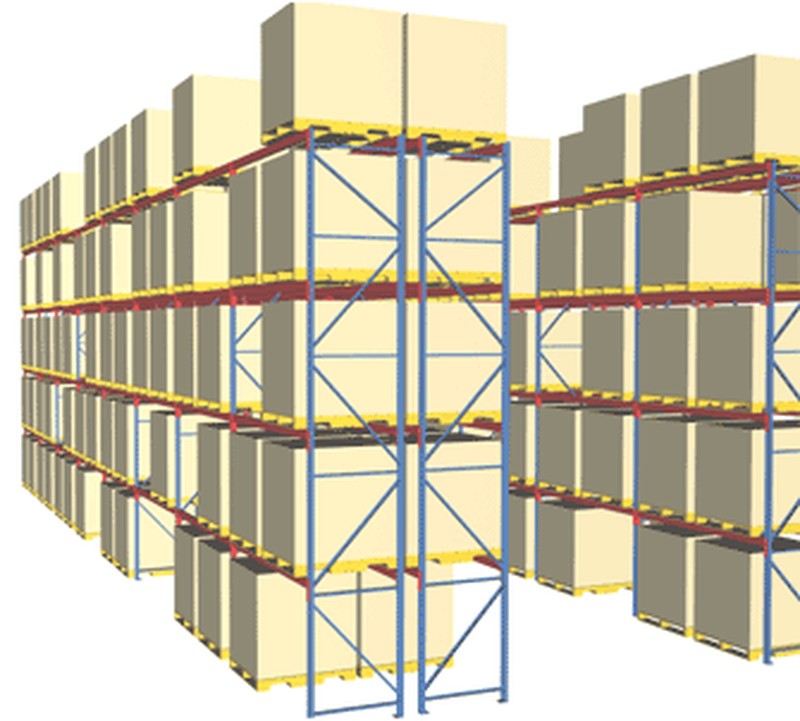

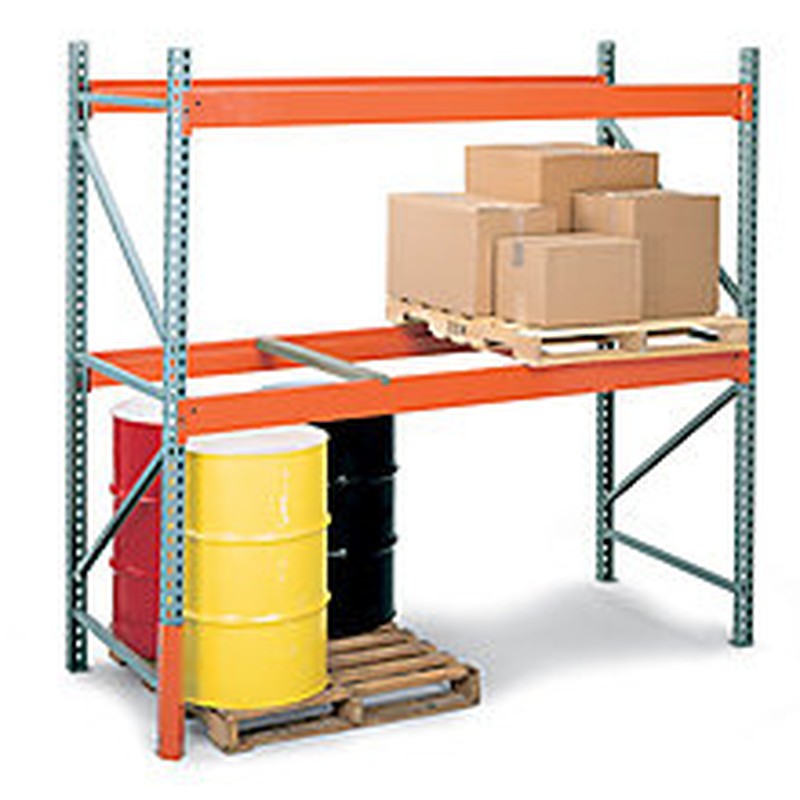

Interlake Roll-formed selective pallet rack is the most popular and versatile racking in the industry.
It offers the best solutions for warehouses with palletized products and a wide variety of goods.

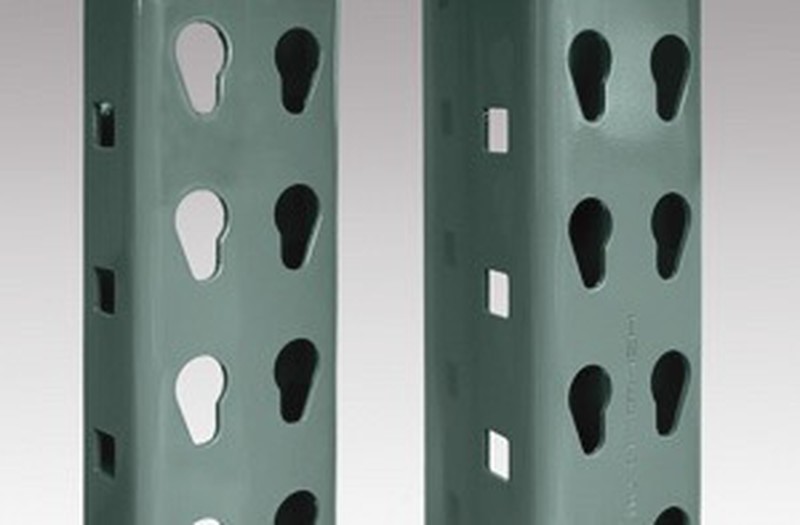

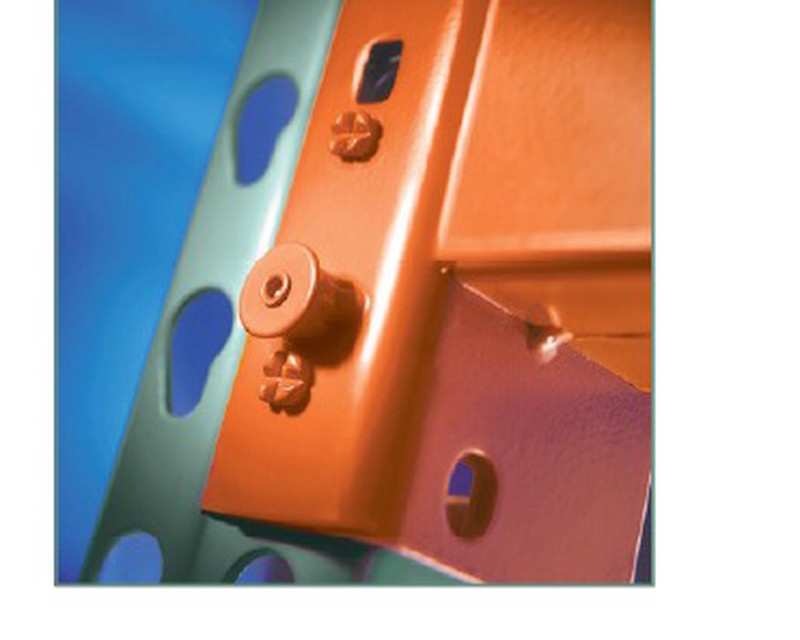

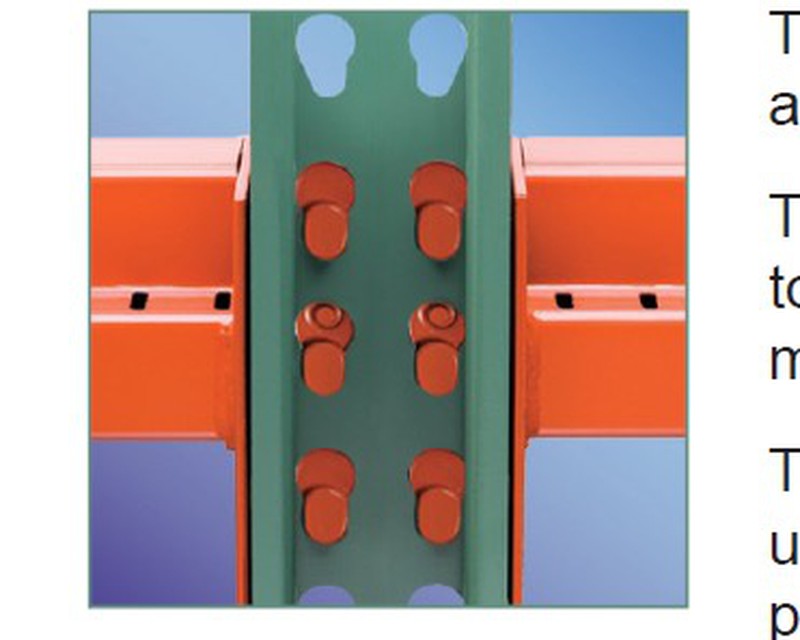

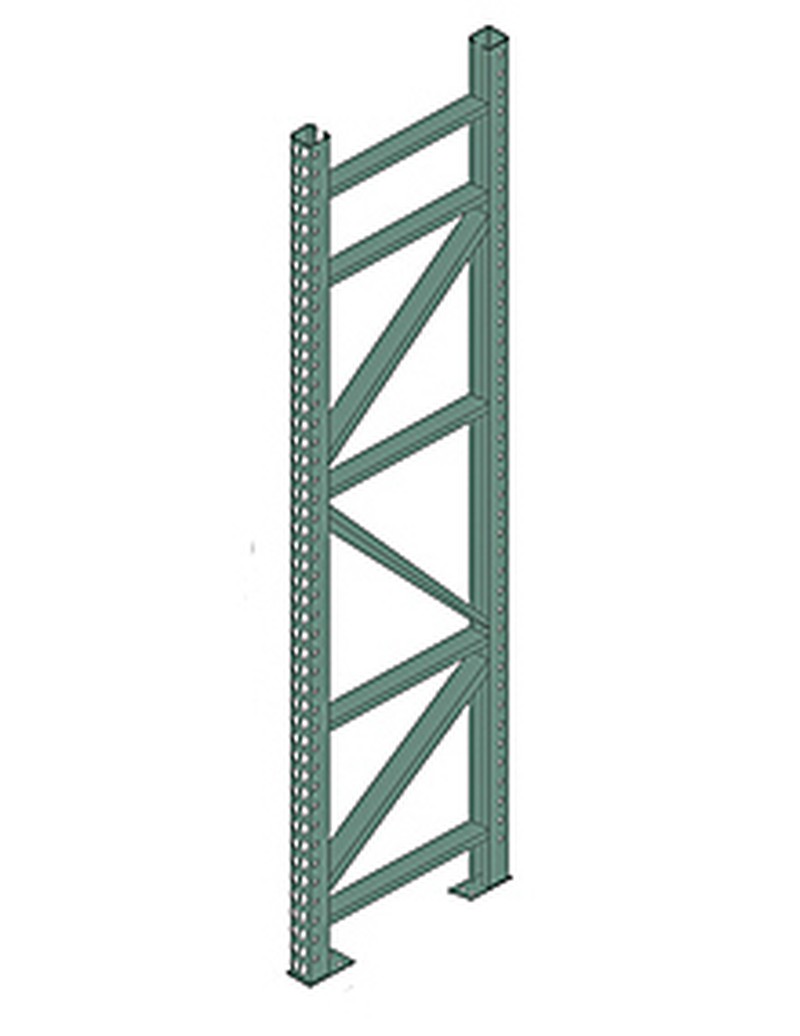

Selective pallet rack is available with either bolted or welded (boltless) frames. Our patented beam-to-frame connection creates the most rigid and reliable structure available. It also provides exceptional protection against damage, tampering and accidental disengagement.
The company uses only high-strength steel certified to meet the strictest specifications. All weld operations are controlled through advanced robotics or performed by welders certified to AWS Standards. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions.
Selective pallet rack can be configured for a variety of uses. Double-depth racks can be installed for increased storage capacity which allows one pallet to be stored in front of another on each side of the aisle (requires a deep-reach truck). It can also be used in the construction of rack supported buildings.
Advantages
- Direct access to each pallet.
- Simple stock management.
- Adapts to any product volume, weight or size.

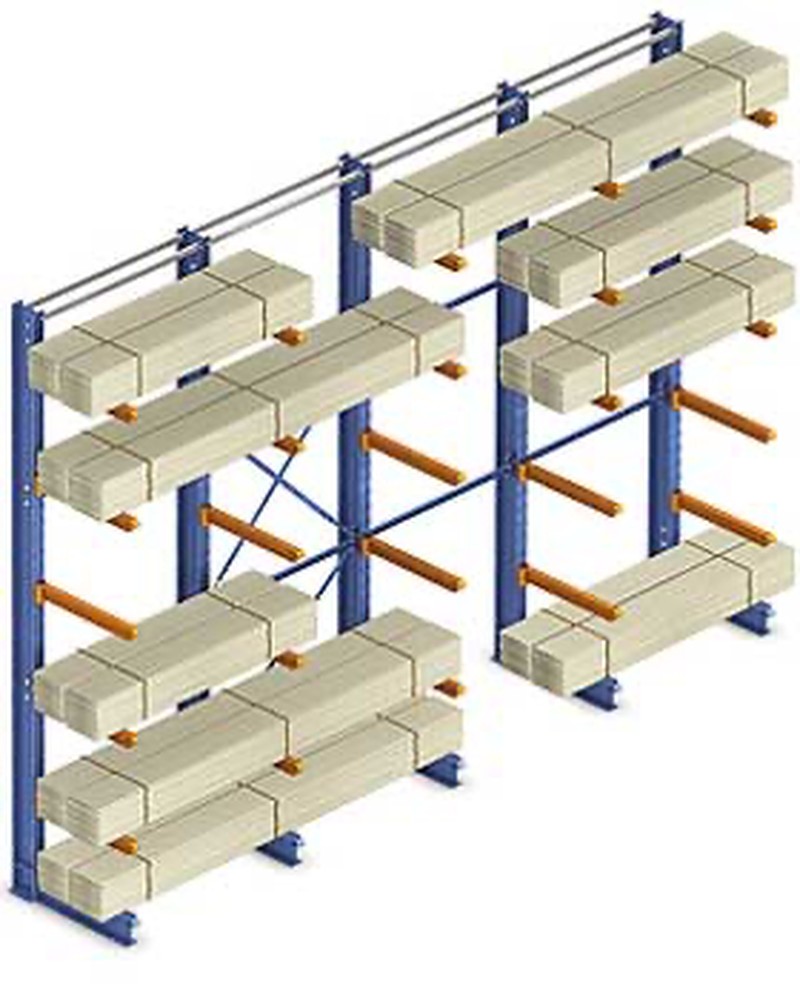

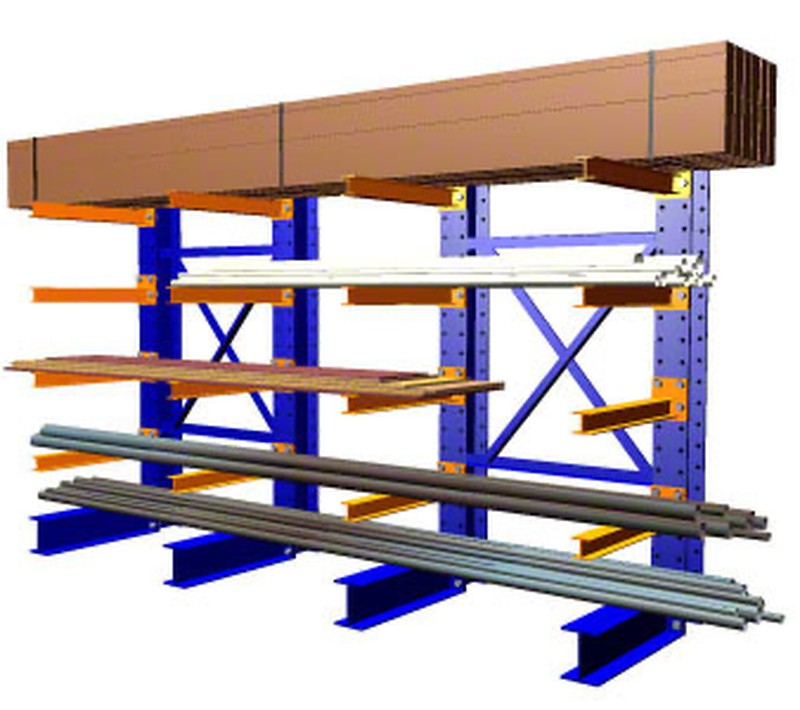

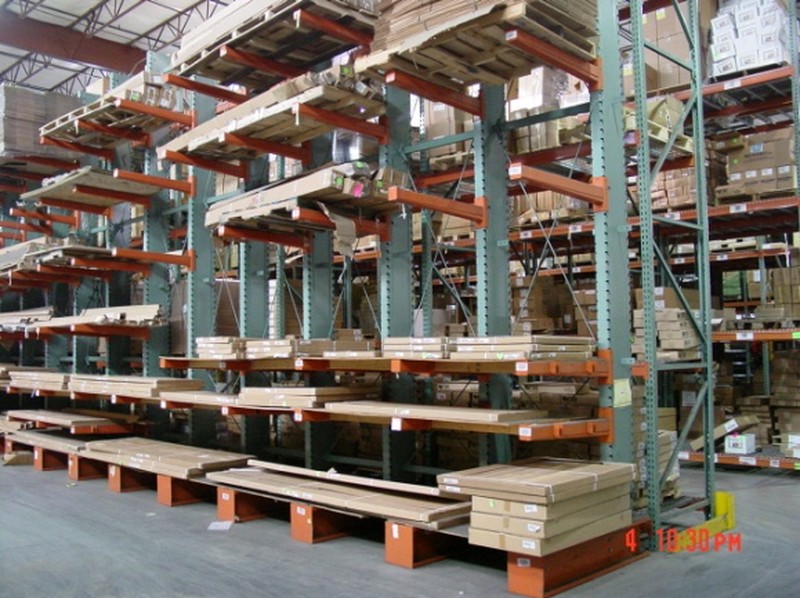

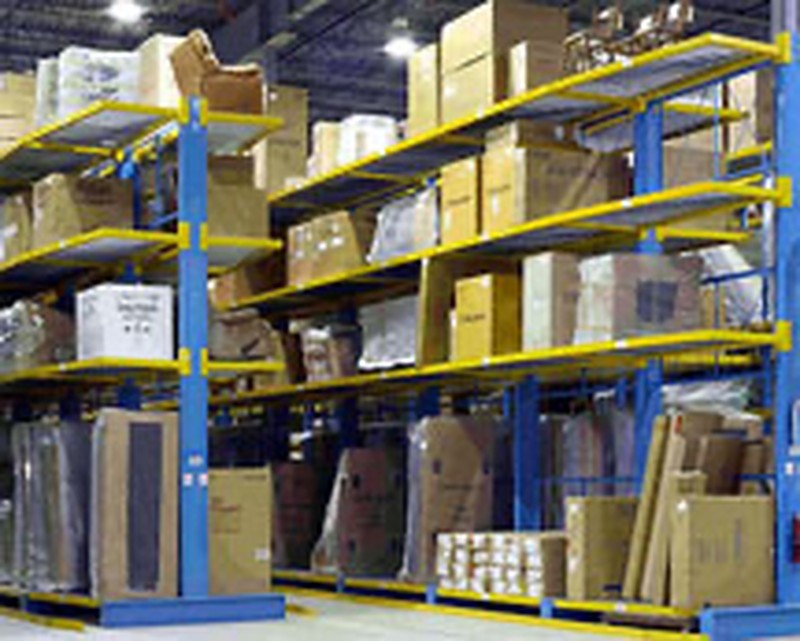

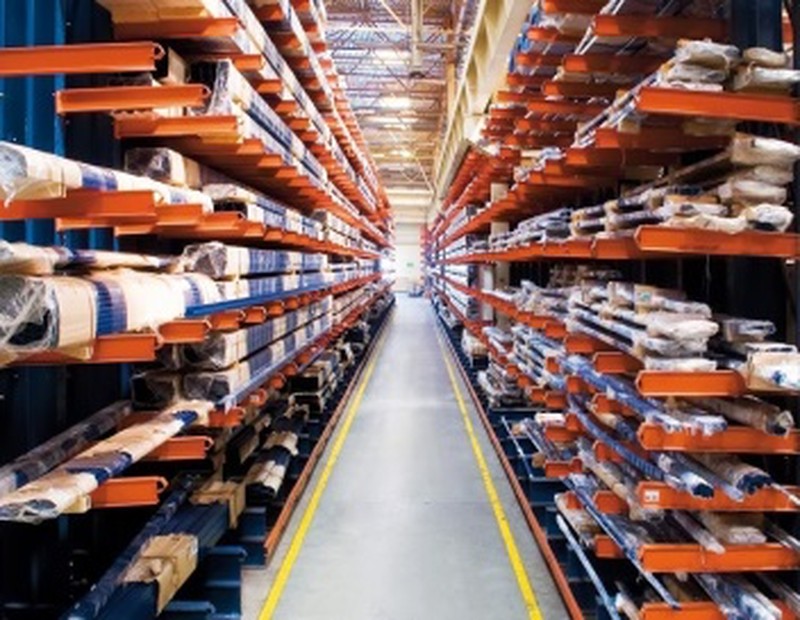

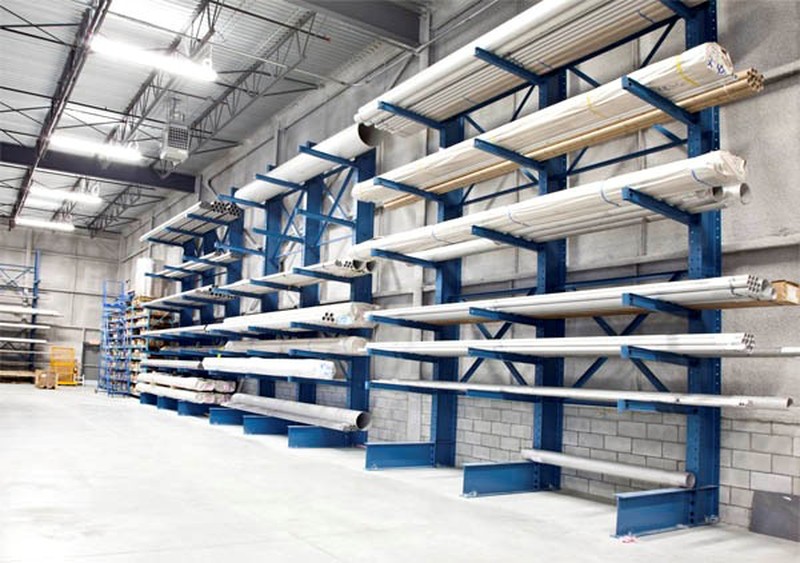

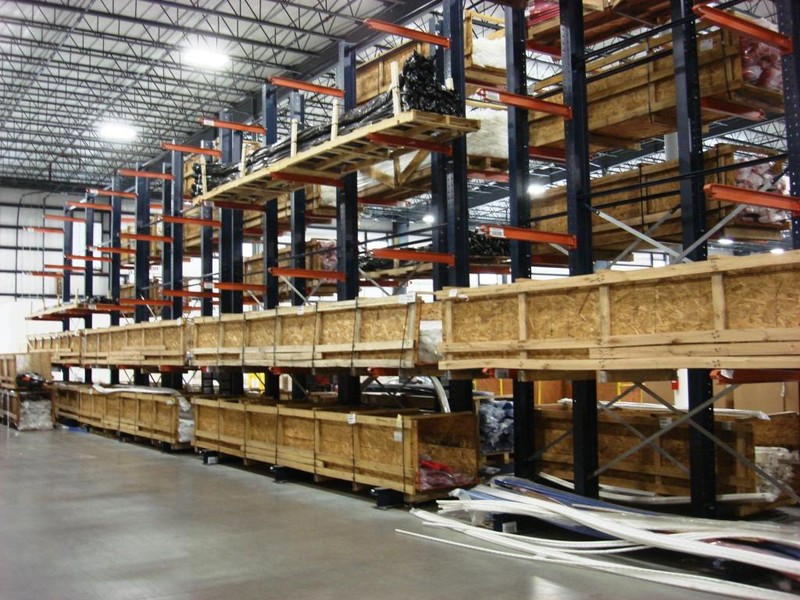

Interlake Mecalux Cantilever Racks
Stores long bulky items while saving space.
Cantilever is a medium to heavy duty storage solution utilizing load bearing arms anchored by a large column at one end. This leaves the picking face unimpeded by structural elements. Cantilever Rack is the optimal storage solution for long or bulky items such as furniture, lumber, tubing, textiles, piping and other long items. Cantilever Rack is available in both roll formed and structural steel designs.
Advantages
- Wide range of load capacities for both standard and seismic applications
- Center column design creates unlimited horizontal space
- Vertically adjustable arms in 2" increments allow maximum versatility
- Fully customizable

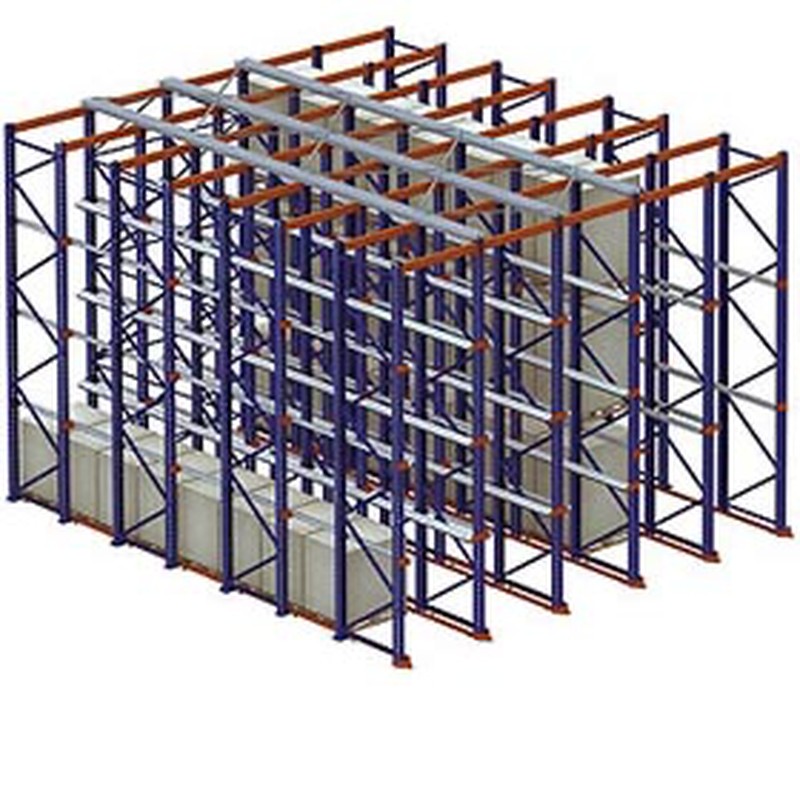

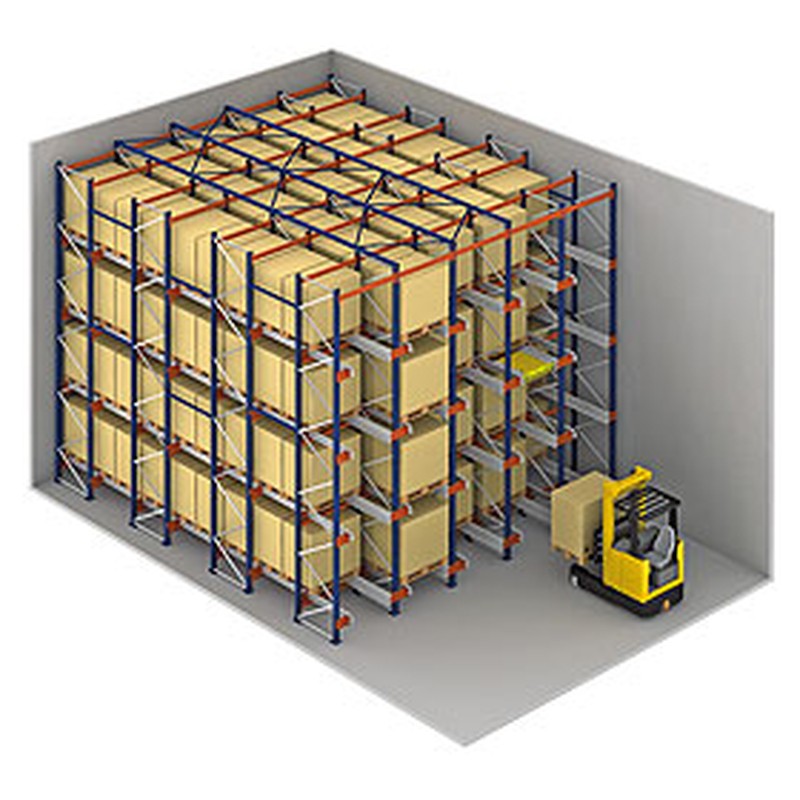

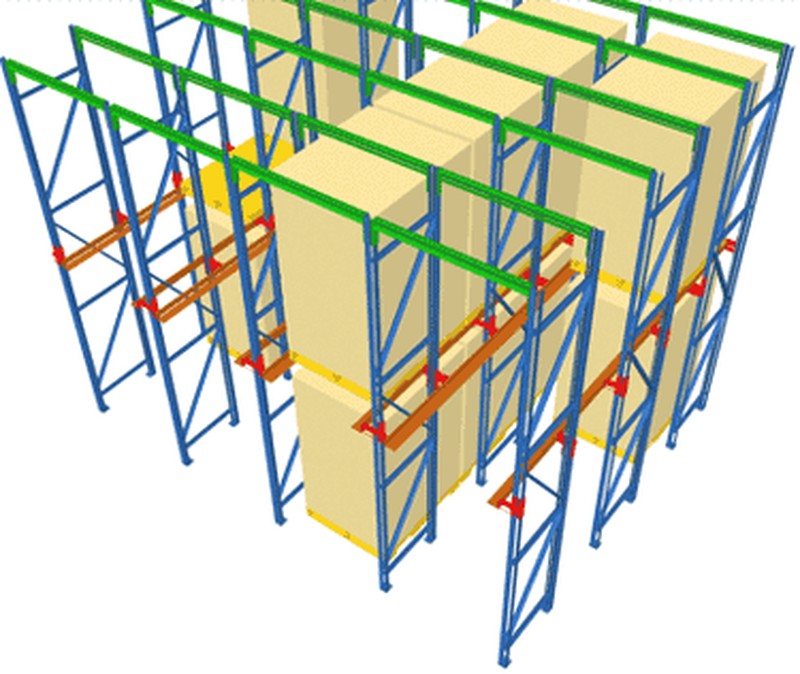

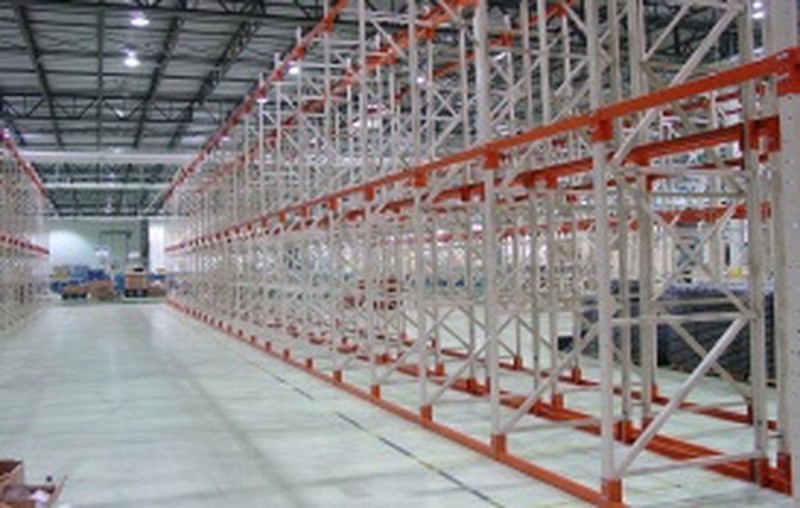

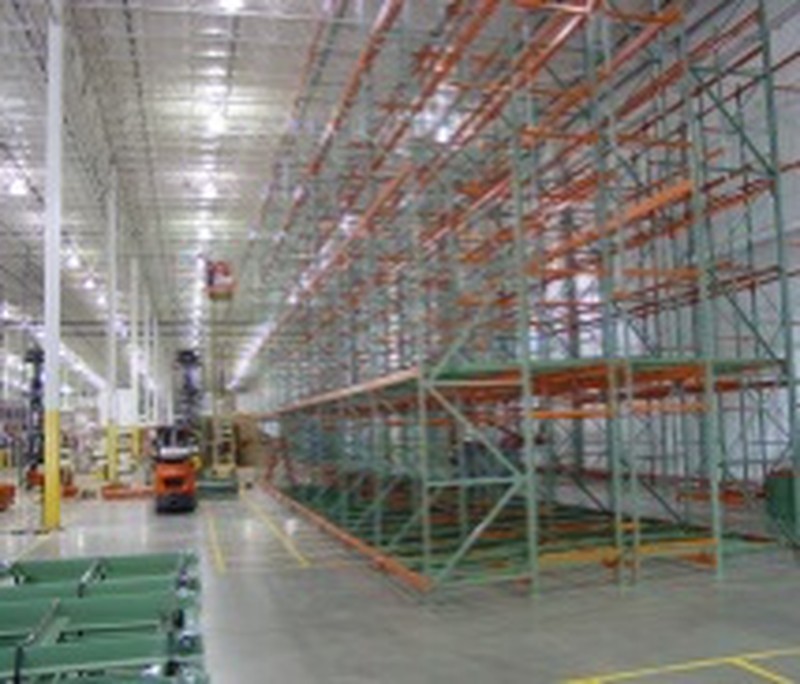

Interlake Mecalux Drive-InPallet Rack
Optimize space. Drive-In/Drive thru is a high density storage solution ideal for homogeneous, low-rotation products with a large number of pallets. Adaptable to either a First in – First Out system or a First in – Last Out system, Drive-In Drive Thru is highly customizable.
Drive-in/Drive-Thru Pallet Rack is ideal for stocking large quantities of relatively few items. It can reduce overall square footage requirements by 35 percent or more compared to a standard selective rack configuration.
Advantages
- LIFO/FIFO (last in first out/first in first out) configurations
- Reduces space, cost and holds more loads with deep lane storage
- High volume, low SKU
- Eliminates the need for multiple aisles
- Provides control over entry and exit
- Density (Drive In Drive Thru) vs. selectivity
- Designed around the combination of your pallets and forklifts

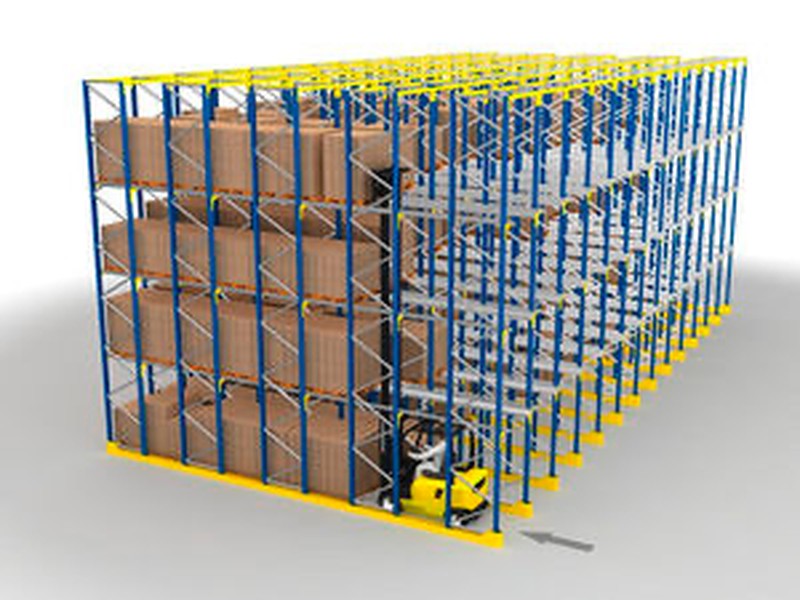

With roll-formed Drive-In/Drive-Thru Racks, products are stored several pallets deep and the lift equipment enters the structure to store or retrieve items.

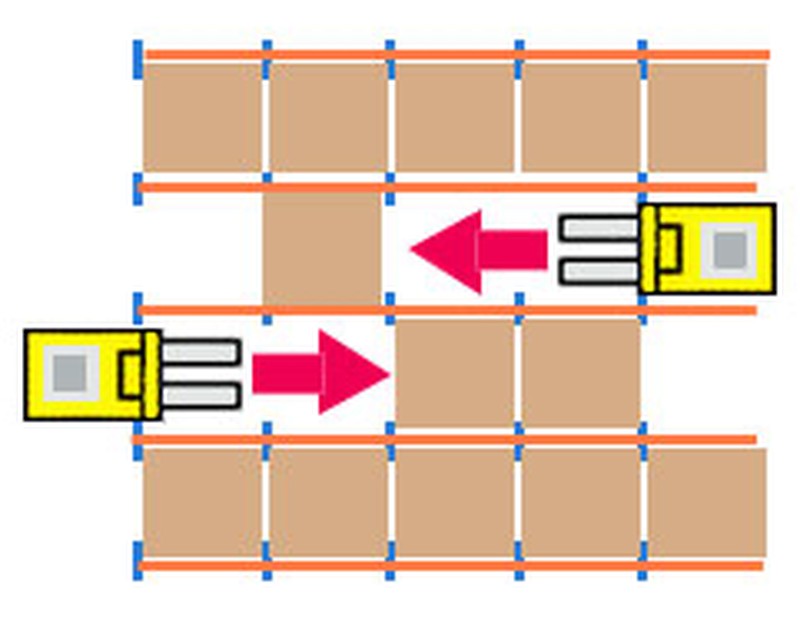

A drive-in pallet rack system uses the same entry and exit point for each storage bay, providing last-in/first-out (LIFO) access, while a drive-thru pallet rack system is loaded on one side and unloaded from the other for first-in/first-out flow (FIFO).
A wide variety of heights and depths are available to meet any storage requirement.

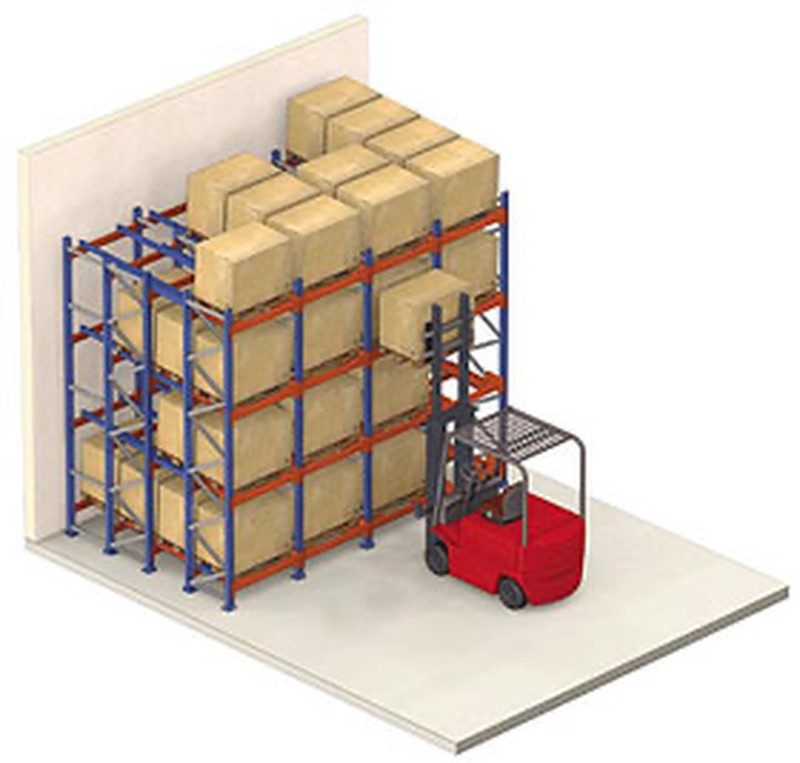

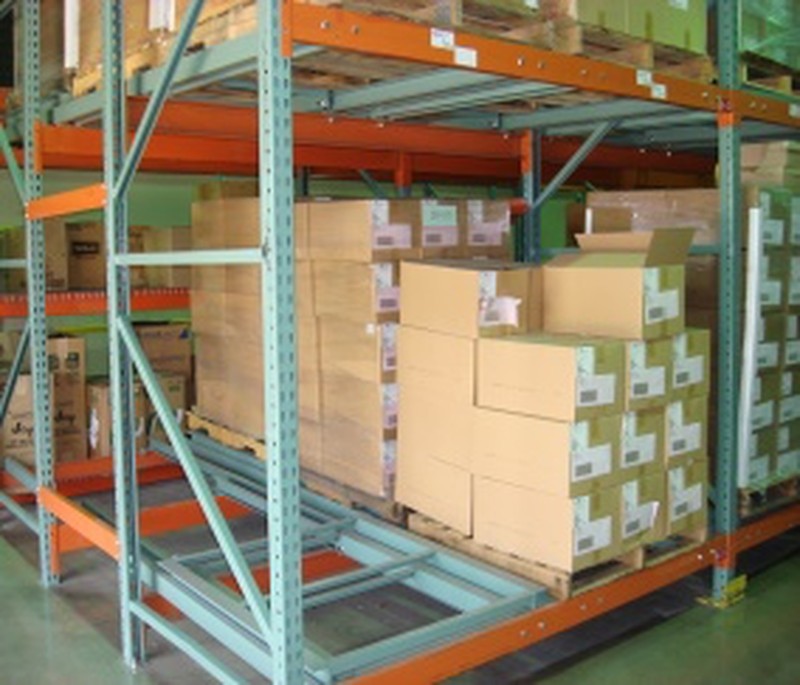

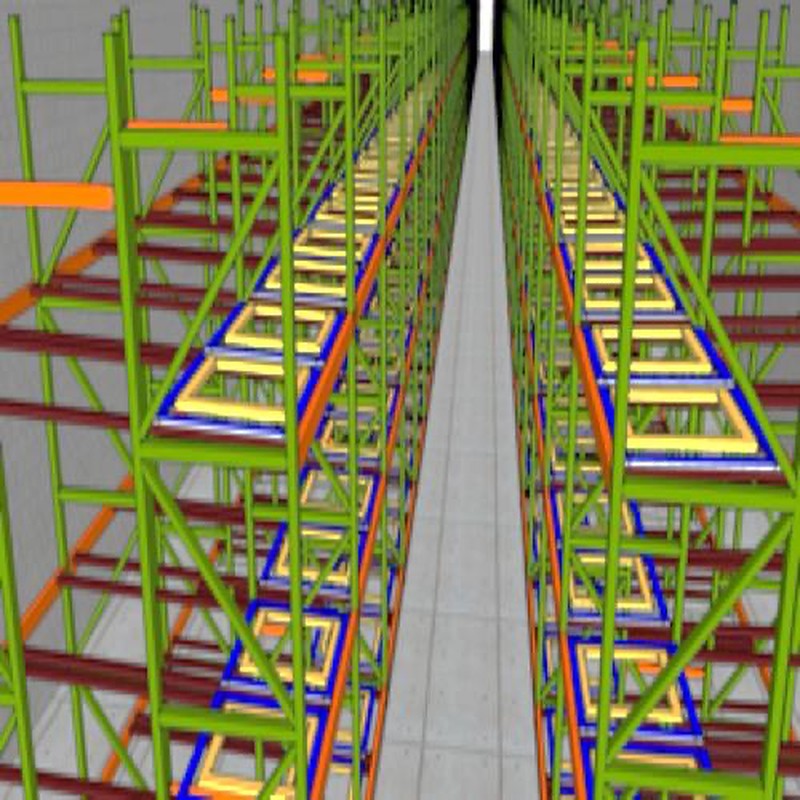

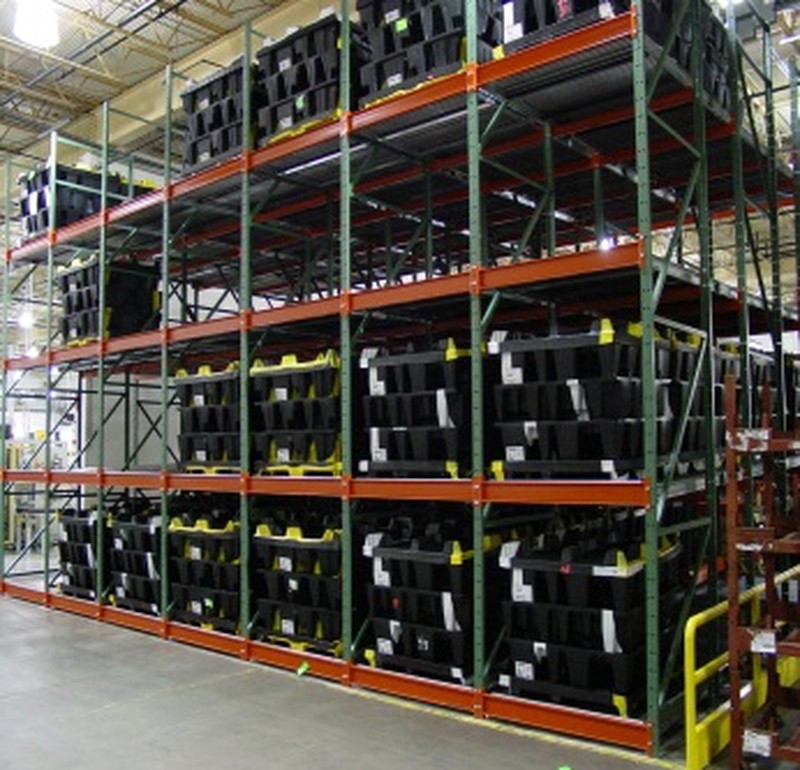

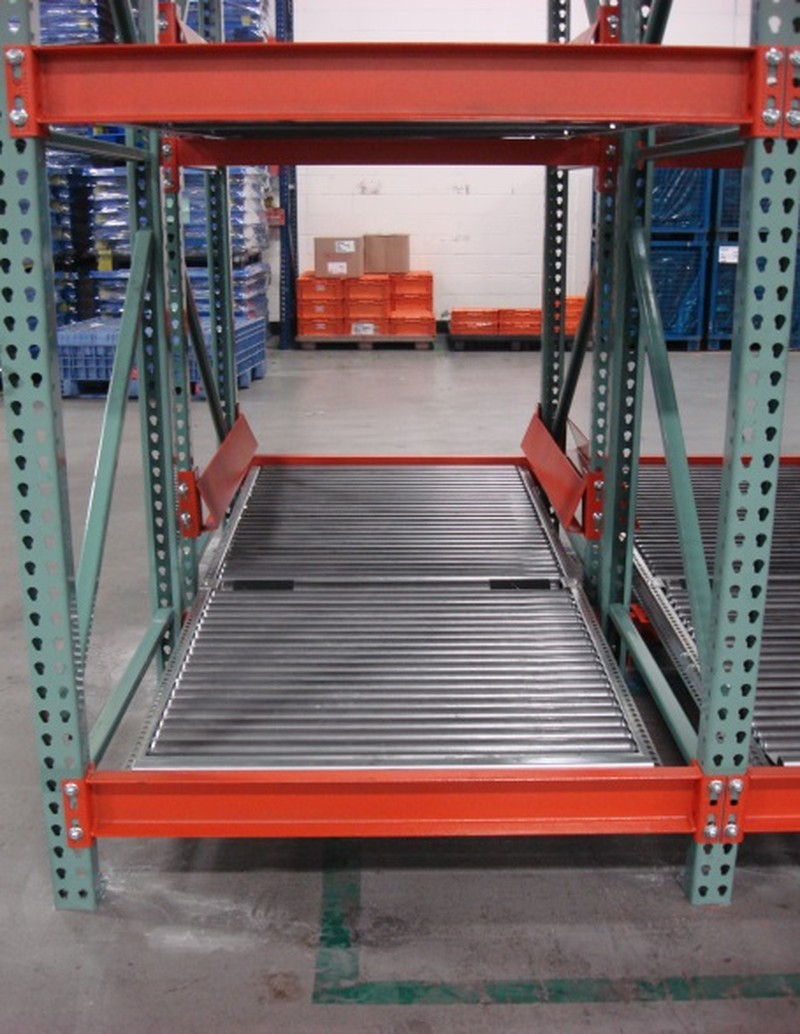

Interlake Mecalux Push Back Rack
Saves space and increases storage density. Each level can store a different reference. Loading and unloading is done using the same aisle (LIFO system).
Push-Back allows multiple product storage conformations to ensure excellent selectivity.

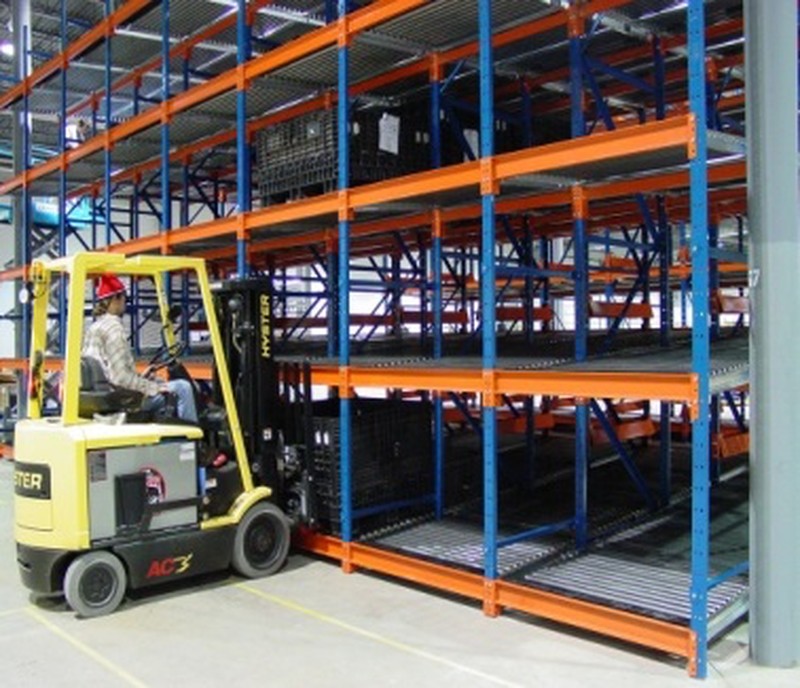

Push-Back Rack is designed for high-density, multiple-product storage situations, combining excellent selectivity and a maintenance-free design. This versatile system uses nesting carriages to store pallets up to five deep, providing multiple pick facing with extremely high throughput.
As each pallet is loaded, it’s placed on a free-rolling carriage that is pushed back into the system by loading additional pallets. When unloading, gravity moves the pallets forward to the aisle on the telescoping carriages, eliminating the need for reaching or driving into the rack.
Advantages
- Allows efficient use of space with limited sacrifice in product accessibility.
- Provides the optimal combination of selectivity and storage density.
- Sturdy construction affords years of maintenance free operation.

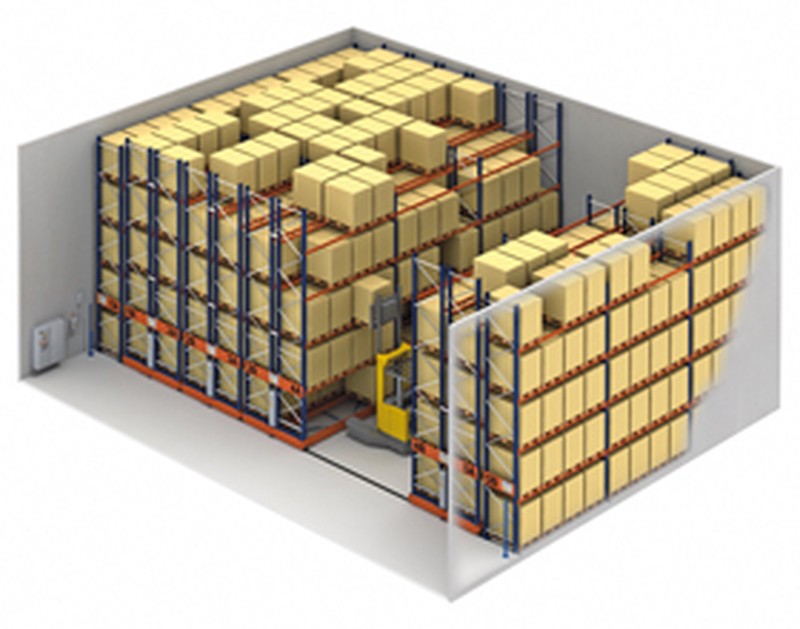

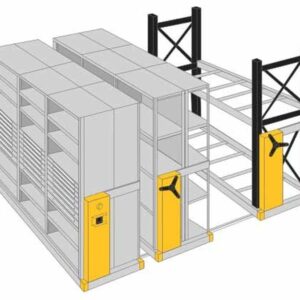

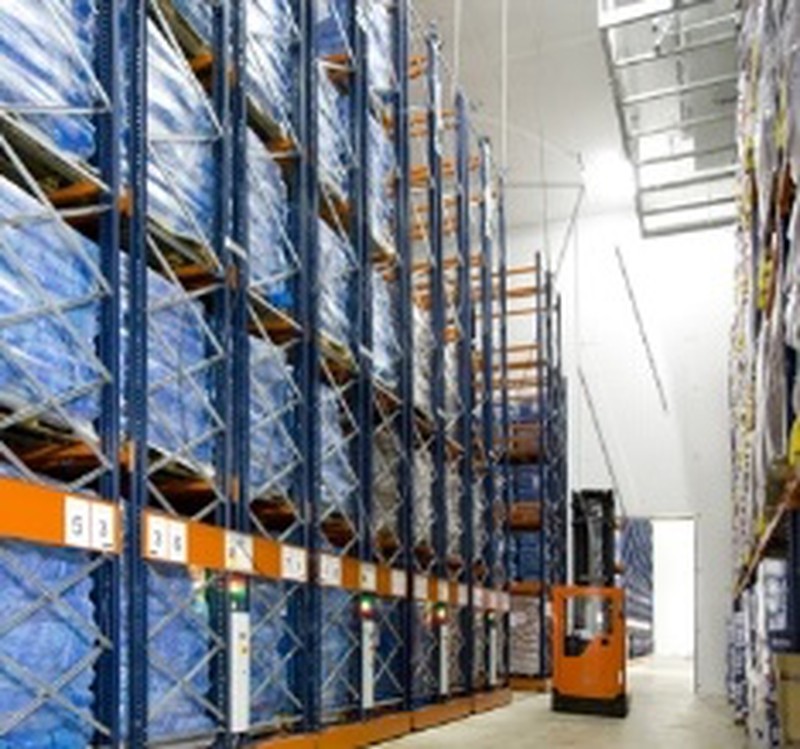

Interlake Mobile Aisle Pallet Racks
OPTIMIZE SPACE BY ELIMINATING INDIVIDUAL ACCESS AISLES
Movable shelves (on wheels and tracks) that hold pallets of goods. Their movability allows the normally wasted space between racks to be reduced, thus allowing for more racks in the same floor space.
Industrial racking and shelving systems address the unique industrial storage and space problems faced especially by manufacturers. Our innovative mobilized systems boost productivity by allowing manufacturers to easily convert multiple aisles of static storage racks into a compact, single moving aisle that easily opens and closes to afford access.
The system can mobilize new or existing static shelving to free up value-generating floor space.
This system uses mobile bases to enable access to several shelves from one single working aisle.
The mobile pallet racking units are installed over guided bases that slide laterally, eliminating the need for multiple fixed aisles. With mobile racking and shelving, the aisles open up only when the operator requests access. The motorized mobile bases are electronically-powered and are guided by rails in the floor.

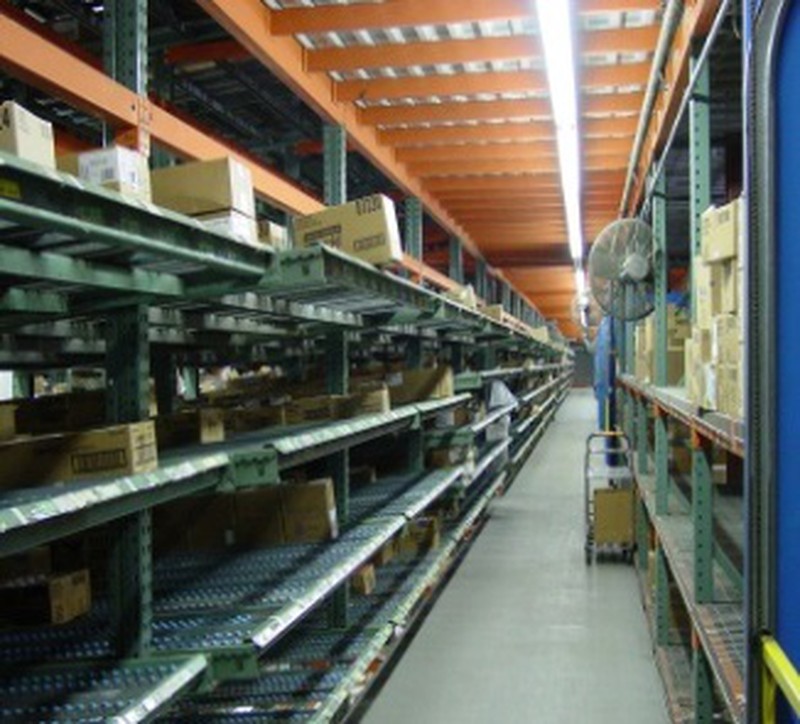

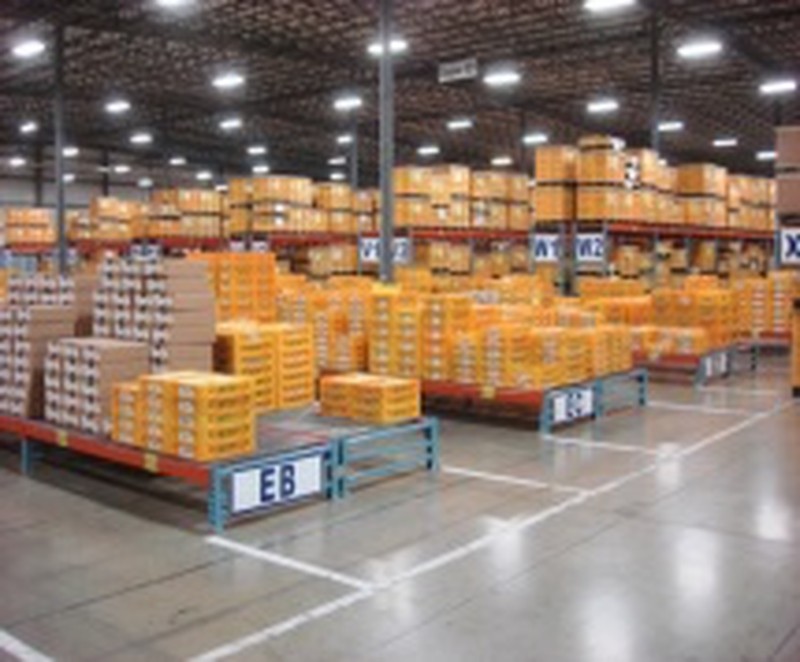

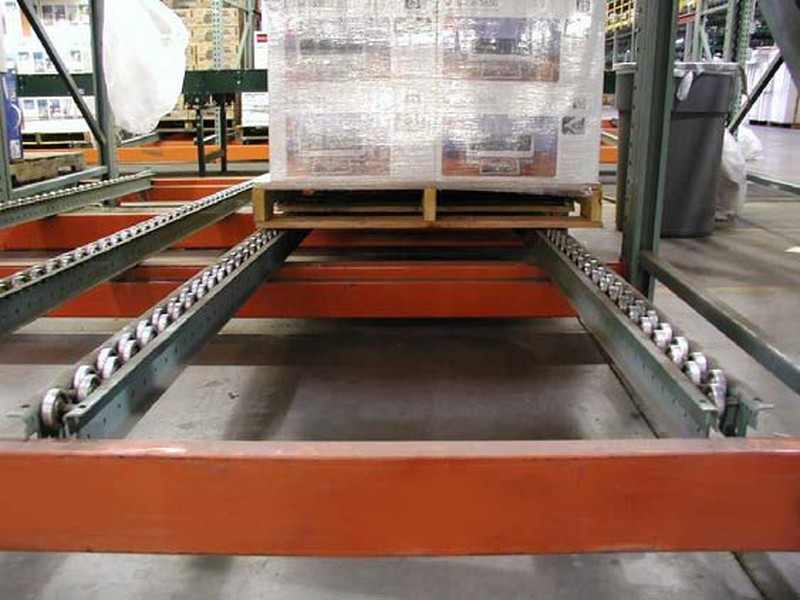

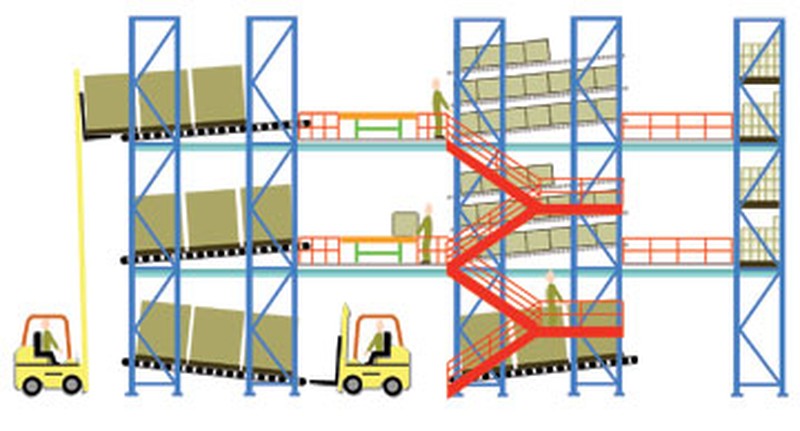

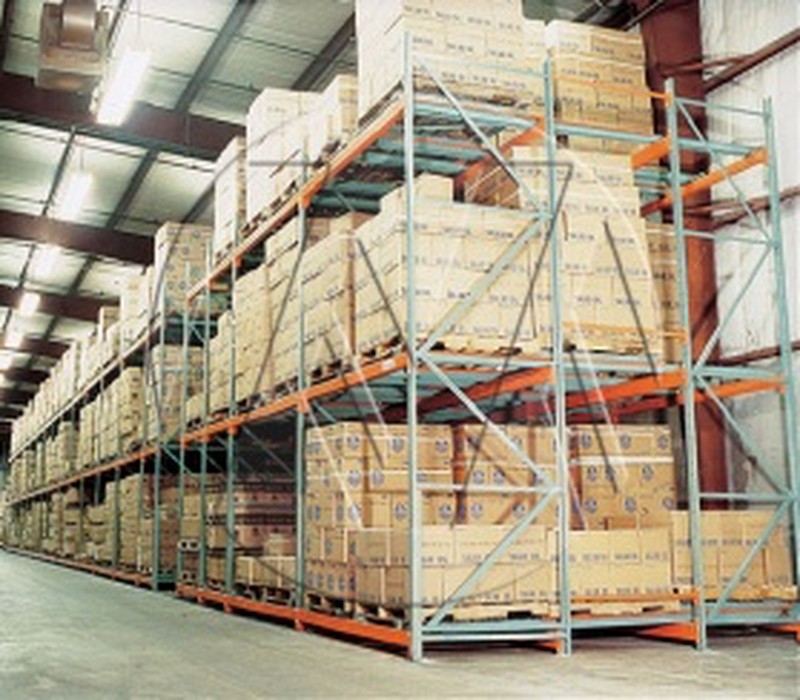

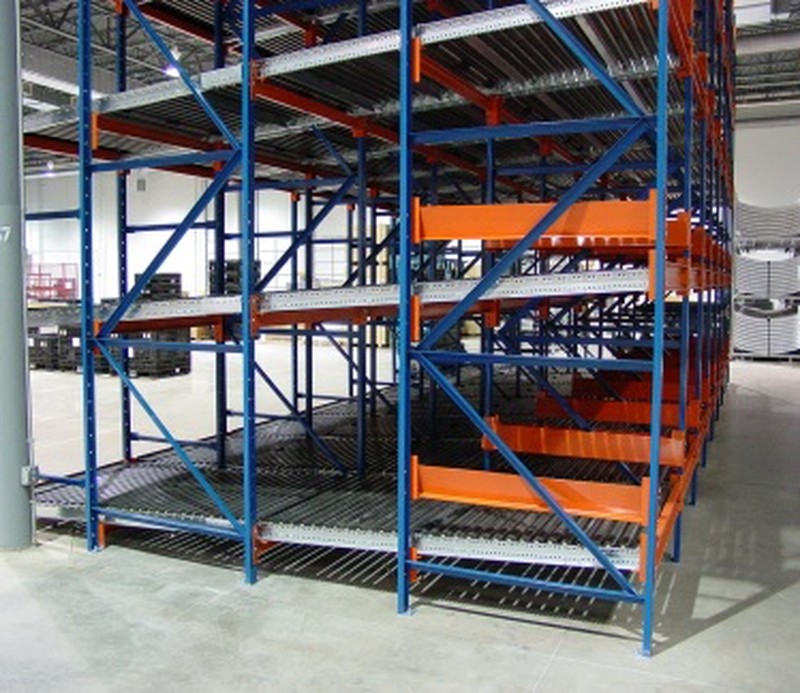

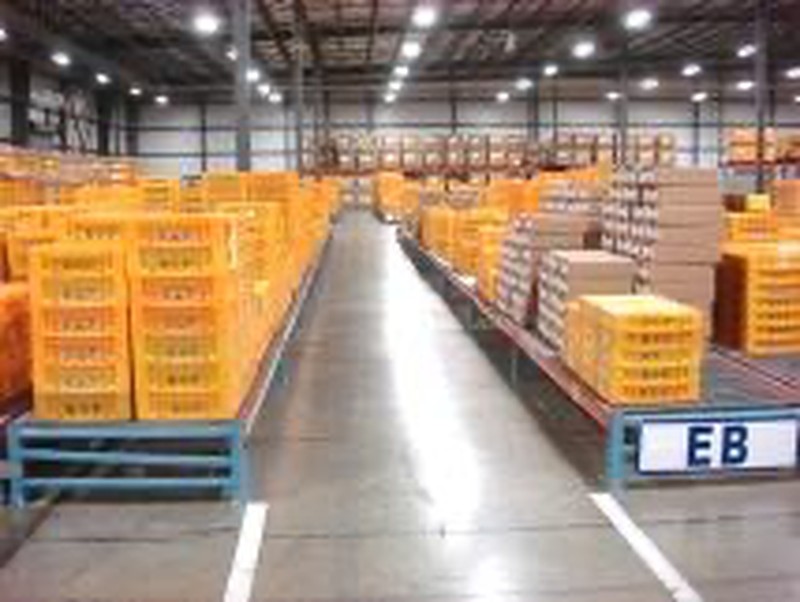

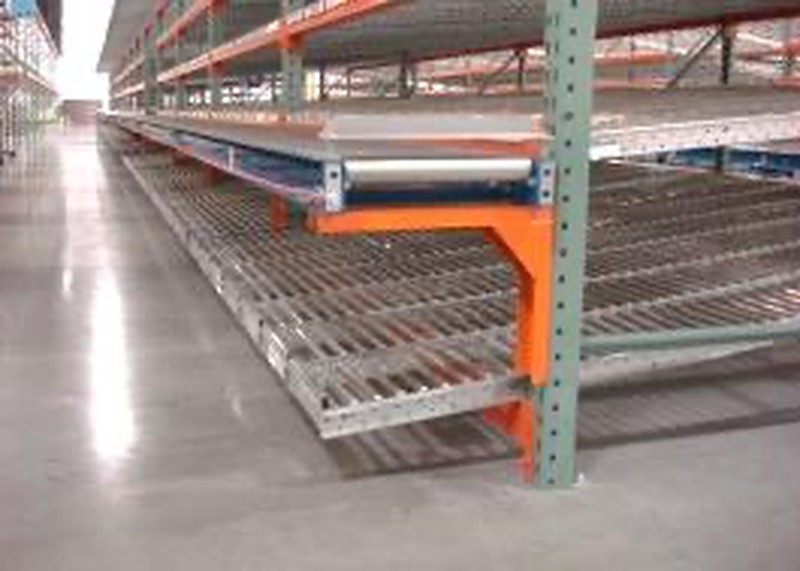

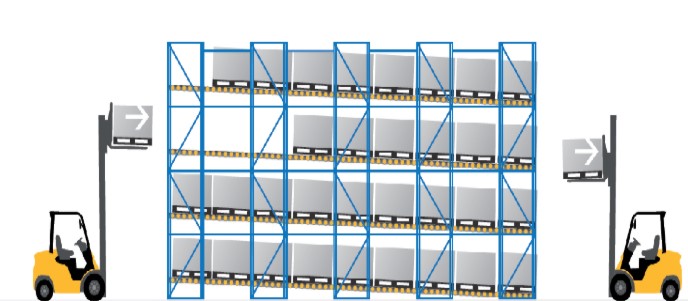

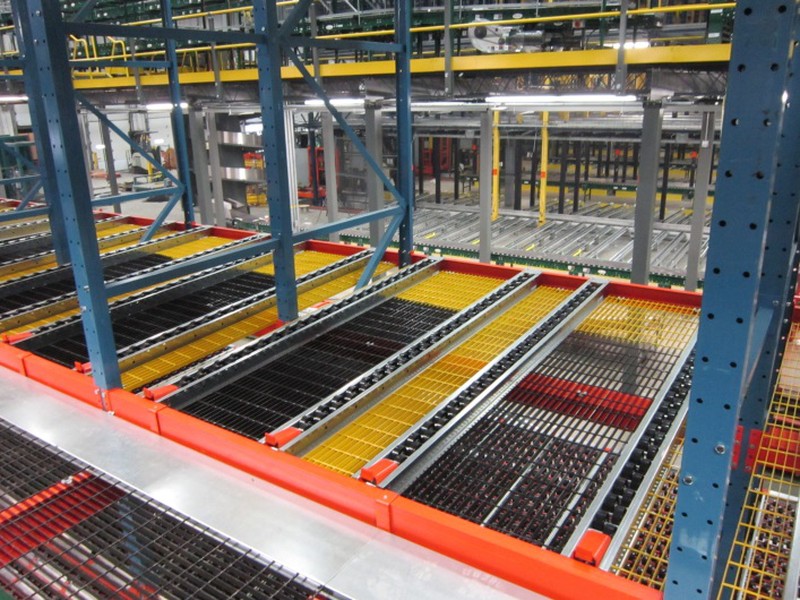

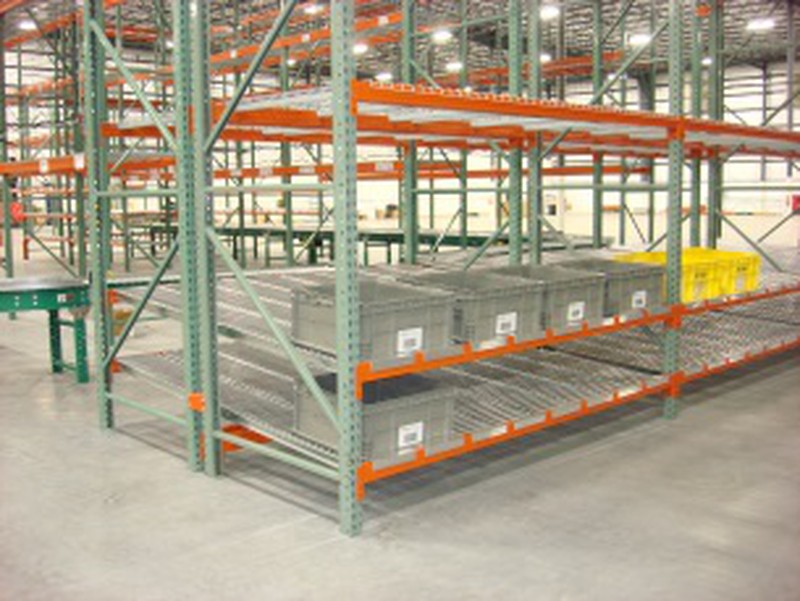

Pallet Flow Racks Perfect Pallet Rotation FIFO
Pallet Flow systems fully utilize the available storage space while ensuring the faces along the picking aisle remain regularly stocked. In this first-in/first-out (FIFO) system, pallets are loaded at the top end of the slightly inclined rack and glide safely and effortlessly at a controlled pace to the other side.
These heavy-duty systems are designed for years of trouble-free operation with rugged load-bearing wheels. Inventory turnover is quick and efficient, whether merchandise is moved strictly on pallets or as part of an order picking system.
Advantages
- Ideal for material with expiration dates.
- Produces an almost solid volume of usable storage space.
- Provides savings in space, manpower and utilities.

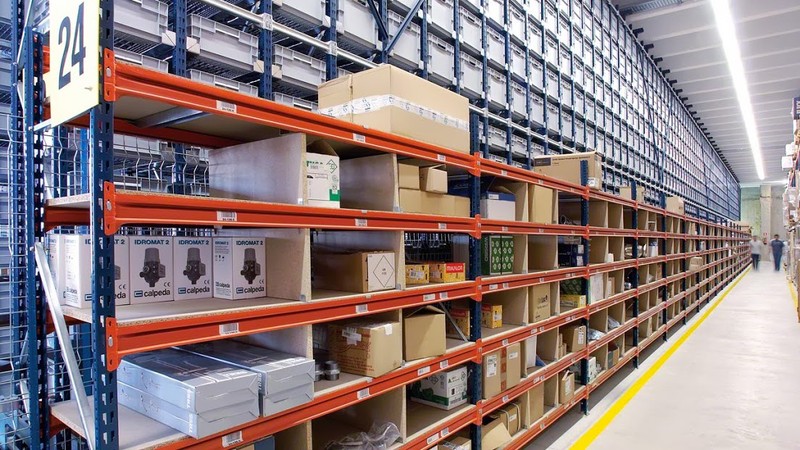

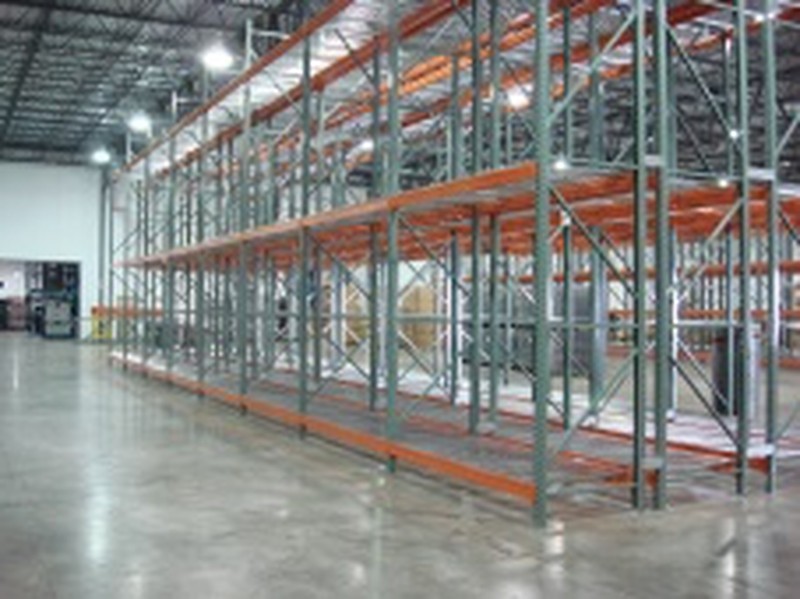

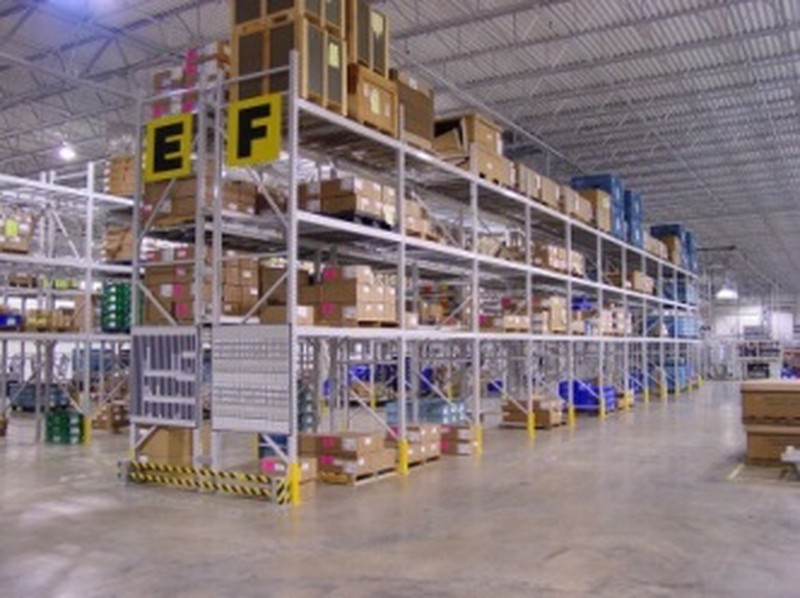

Wide Span Racks

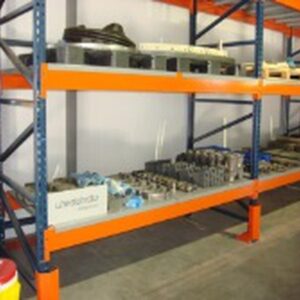

Hand-stack racks for medium to heavy loads.
Pallet Flow systems fully utilize the available storage space while ensuring the faces along the picking aisle remain regularly stocked. In this first-in/first-out (FIFO) system, pallets are loaded at the top end of the slightly inclined rack and glide safely and effortlessly at a controlled pace to the other side.
These heavy-duty systems are designed for years of trouble-free operation with rugged load-bearing wheels. Inventory turnover is quick and efficient, whether merchandise is moved strictly on pallets or as part of an order picking system.
Advantages
- Quick and easy assembly
- Can be adapted to a shelving module for any load configuration

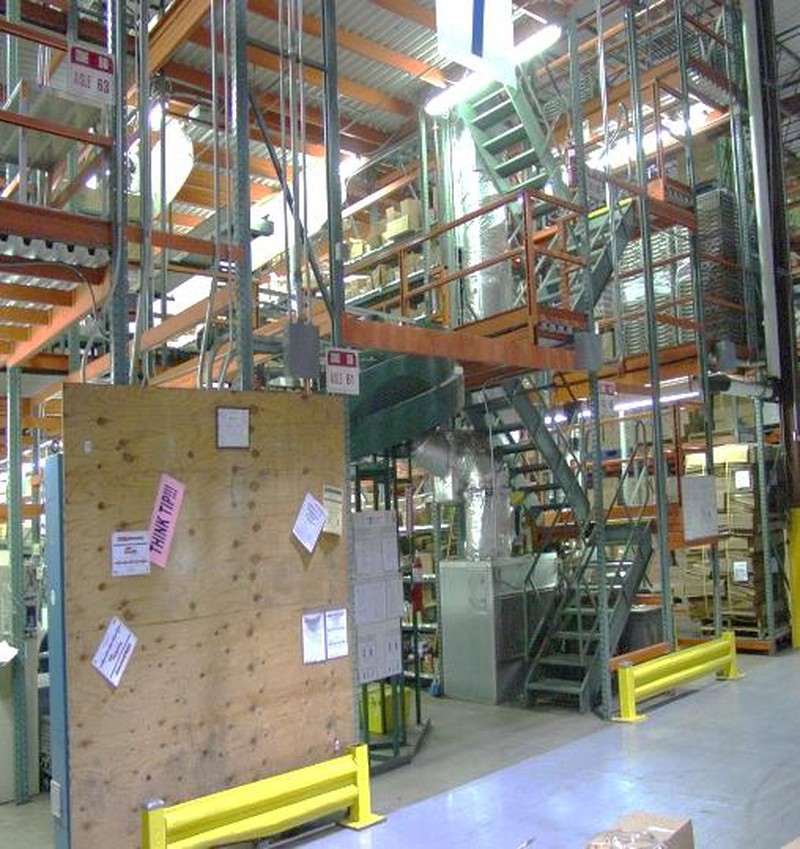

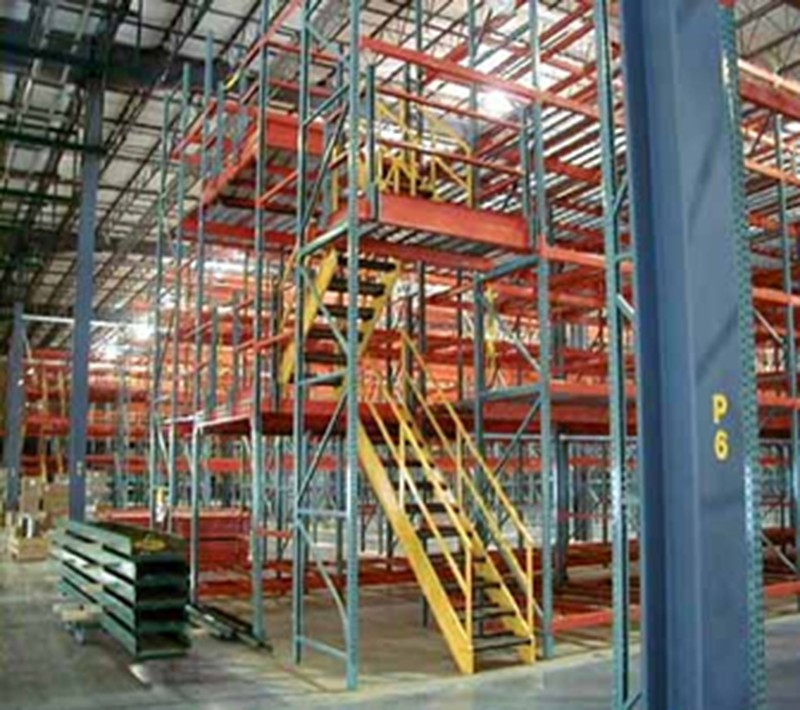

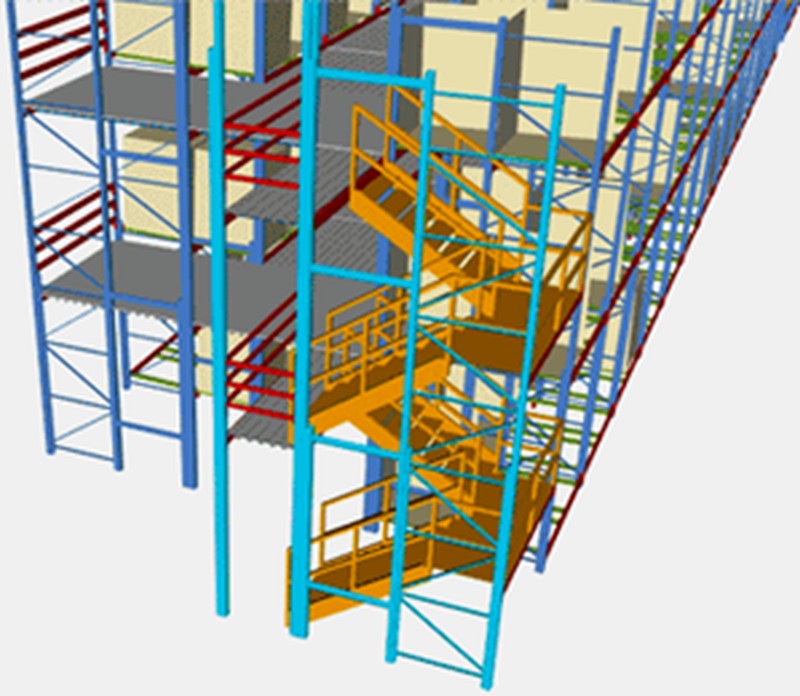

- Our design can accommodate galvanized steel shelf panels, reinforced wire decking, hanger beams for storing textiles and clothing, or particle board for a wide variety of applications With an assortment of available accessories and components, Wide Span Shelving can be adapted to meet a variety of hand-stack storage requirements. Taking advantage of the warehouse height is possible simply by installing stairs and catwalks to provide access to higher levels.
Quick Ship
Our most popular wide span shelving components are available for quick and cost-effective delivery.

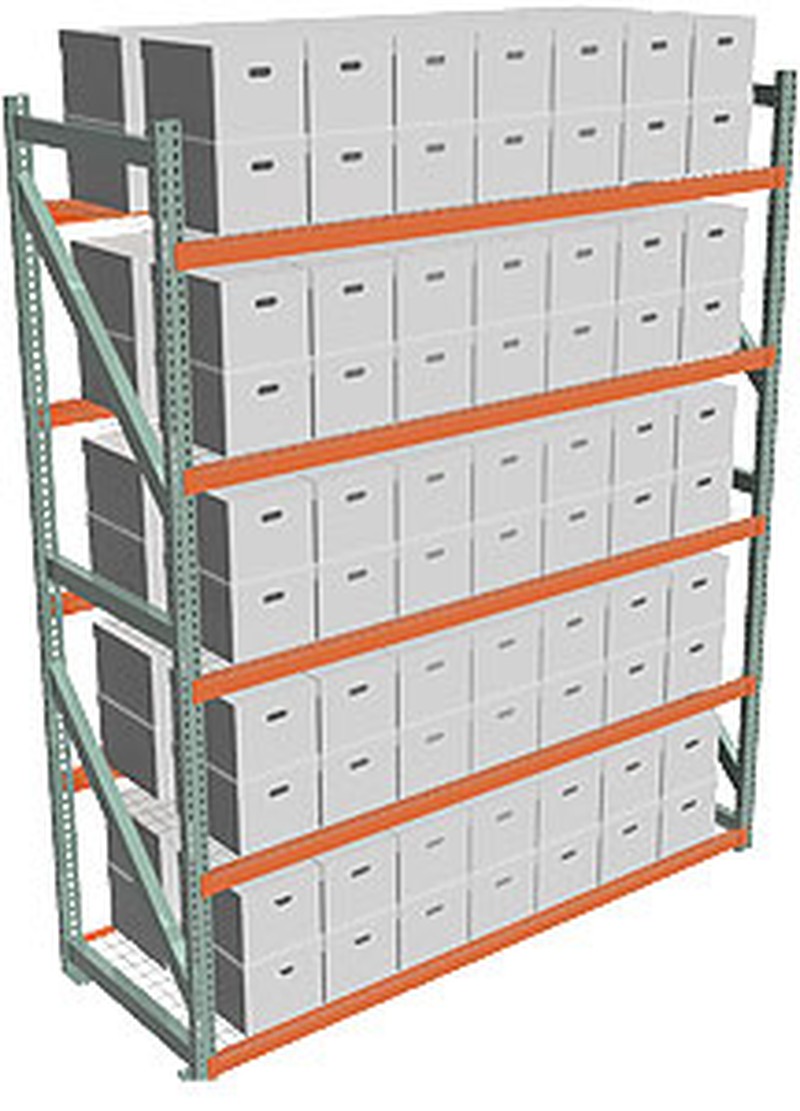

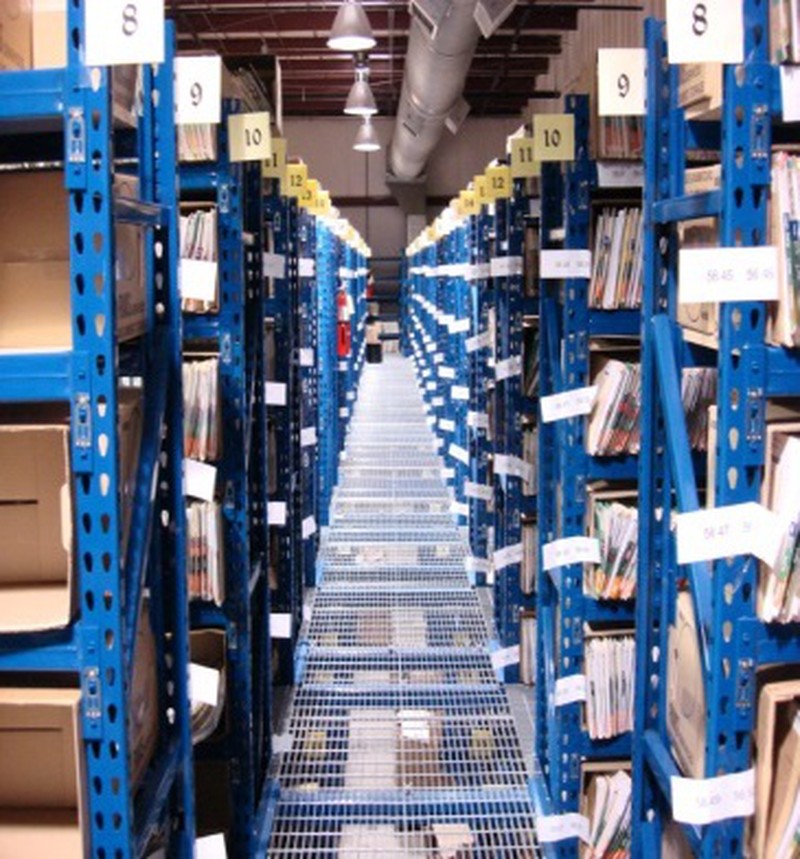

Record Storage
- Increased throughput and optimized facility flow
- Reduced on-hand inventory and increased inventory turns
- Fewer picking errors
- Improved delivery accuracy and on-time shipping
- Consolidation of orders
- Minimized product damage
- Improved safety

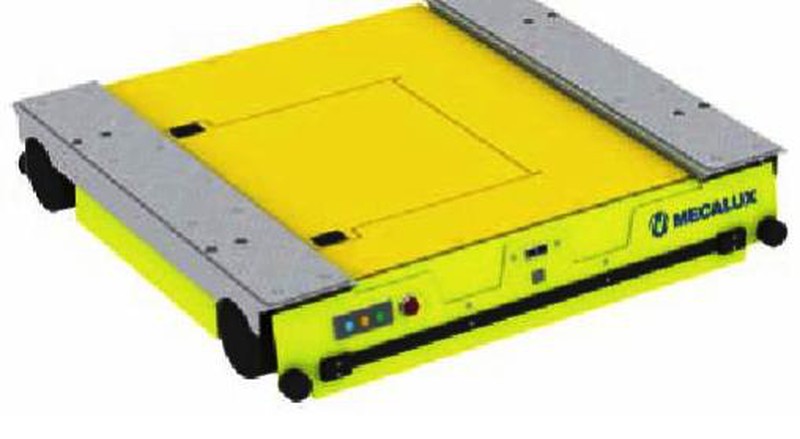

Interlake Mecalux Radio Shuttle
High Capacity Semi-Automated Warehousing.
Radio Shuttle reduces loading and unloading time for pallets, while reducing the risk of accidents.

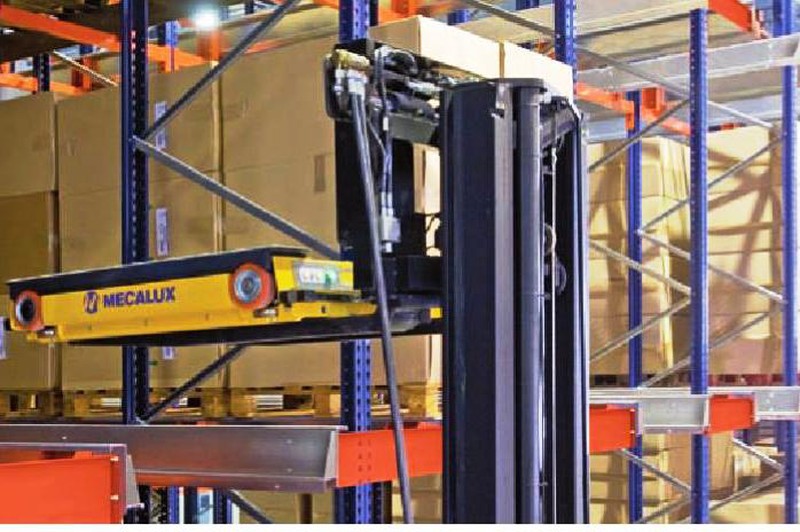

This high density, semi-automated pallet storage and retrieval system makes it easier to load and unload goods thanks to an electric cart called Radio Shuttle.
The forklift sets the load atop the Radio Shuttle which then moves along the track to deposit the load in the correct location.
Advantages
- Shorter unload times for pallets. The Radio Shuttle modules (RSM) retrieve the pallets and bring them to the aisle entrance so the forklift does not have to enter the lane
- Great for deep lane storage
- Allows the storage of different reference numbers per module and therefore a higher number of stored references
- Lower risk of accidents
- Reduced reliance on forklifts inside lanes helps prevent rack damage
- By adding more RSMs, the flow of incoming and outgoing goods increases
- Optimizes space by compacting pallets with different widths inside the channels
- Optimizes space by compacting pallets with different widths inside the channels
- Height between levels is minimized
AS/RS for Boxes
Automated storage and retrieval system designed for boxes, totes or trays.
This miniload system offers extraordinary versatility, and can be integrated into any production or storage system.

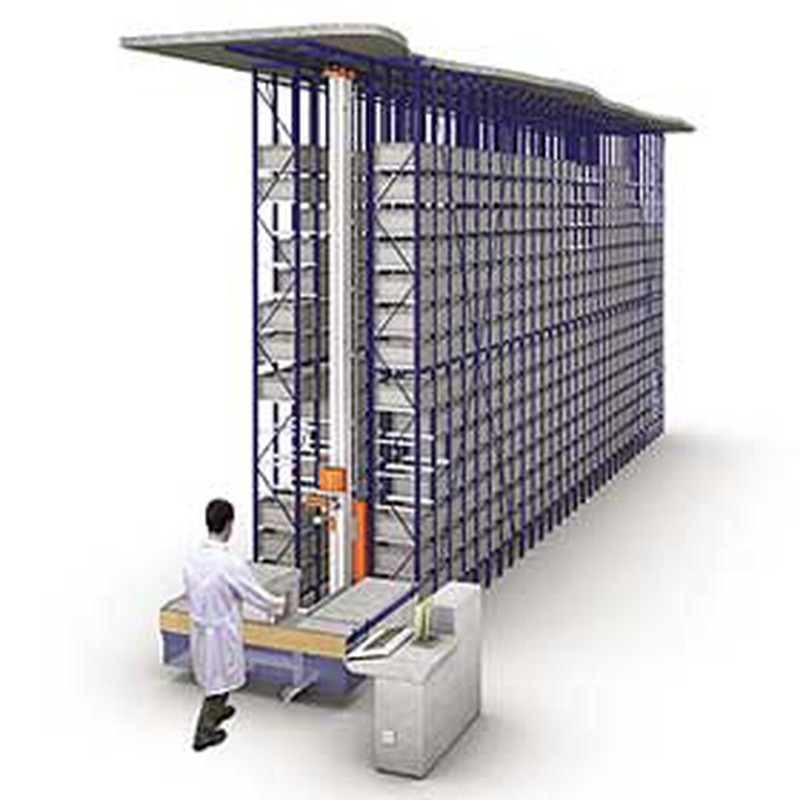

The Mini Load automated warehouse for boxes is an extremely dense storage system designed to move at high speeds for increased productivity in a compact footprint. Utilizing stacker cranes, the mini load system has a standard horizontal speed of 590 feet per minute and a standard vertical lifting speed of 328 feet per minute which improves picking times and operator efficiency.
The mini load system is primarily used for the storage, movement and order fulfillment of small or irregular goods in boxes. In addition to providing the optimum method for handling pick boxes, it is also designed with the basic ergonomic and safety equipment need to perform work and maintenance operations as simply as possible.
Advantages
- Easily expandable system which can be quickly dismantled and reassembled.
- Increases safety by reducing operator fatigue.
- Stacker cranes maximize capacity and increase throughput while operating smoothly and quietly.
Whether selecting the automated warehouse IN-A-BOX or fully customizing a product for specific storage needs, the McKenzie Mini Load AS/RS has the versatility and functionality desired in an automated warehouse. With three operating modes, fully automated, semi-automated, or manual, and a warehouse management software designed to be user-friendly, training on the system is simple. Although plastic boxes (totes) are used most often, the system is compatible with metal containers, plastic trays, collapsible totes or cardboard cases/boxes.

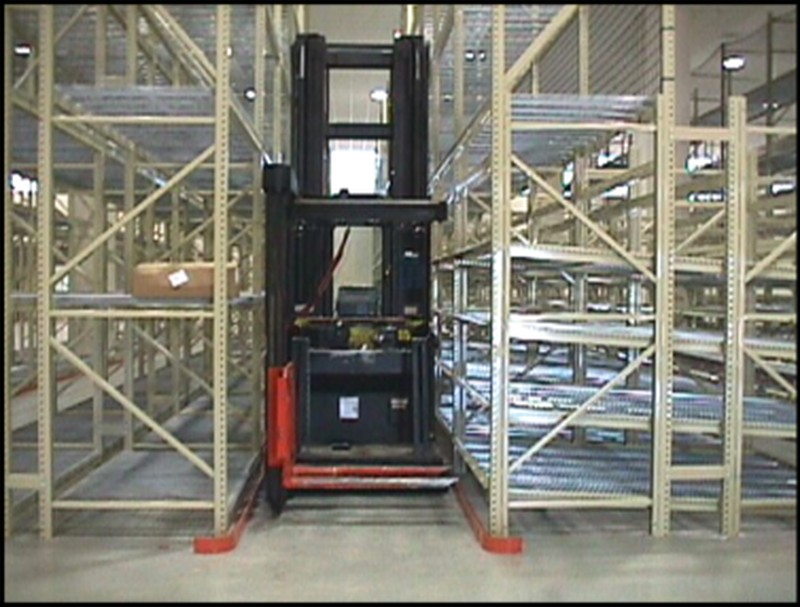

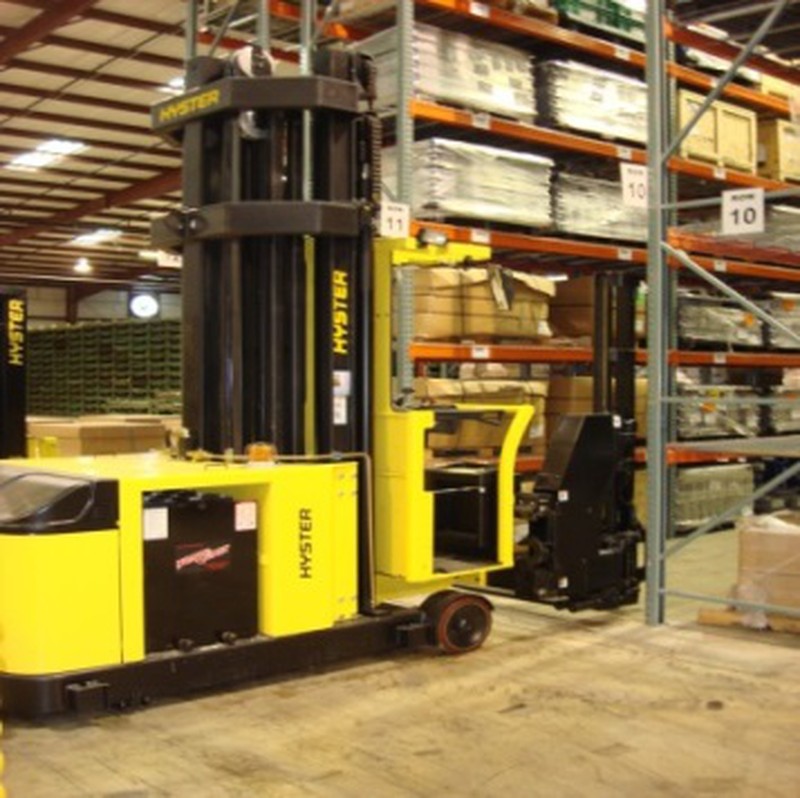

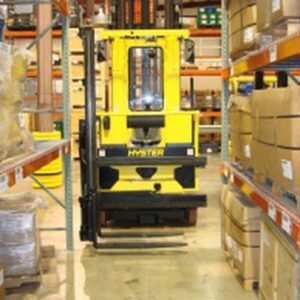

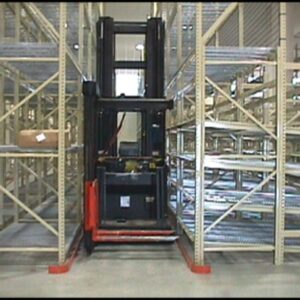

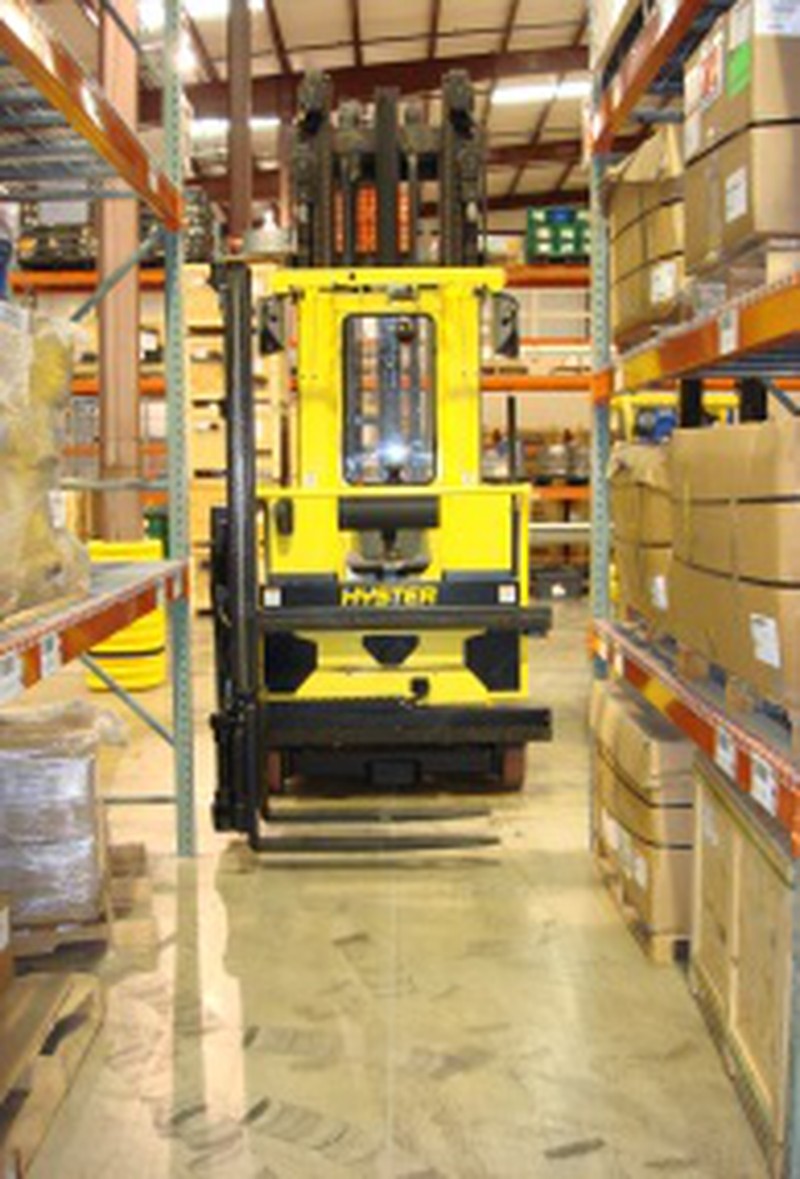

Narrow aisle Pallet Racks
HIGH DENSITY
WIRE GUIDANCE
GUIDE RAIL

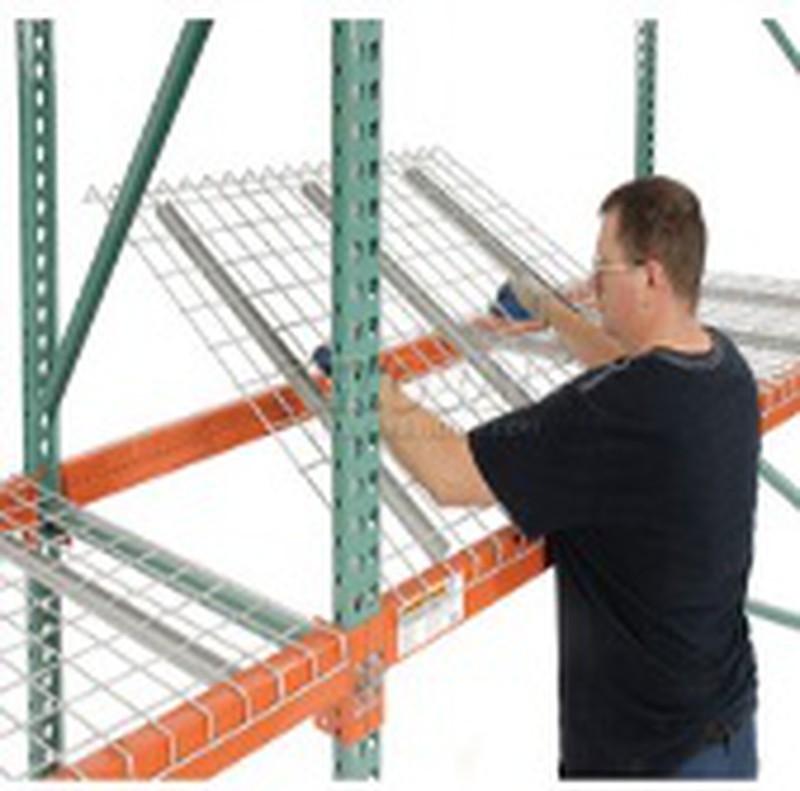

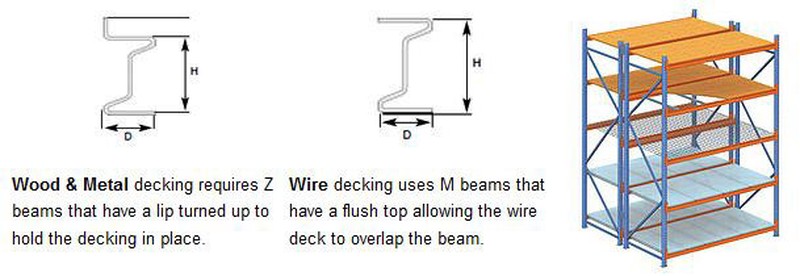

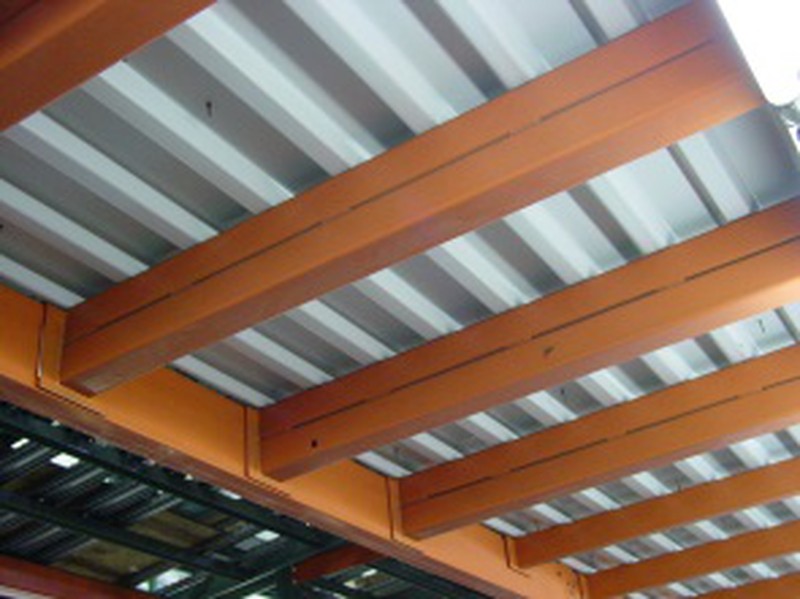

Pallet Rack Decking
J&L WIRE MESH

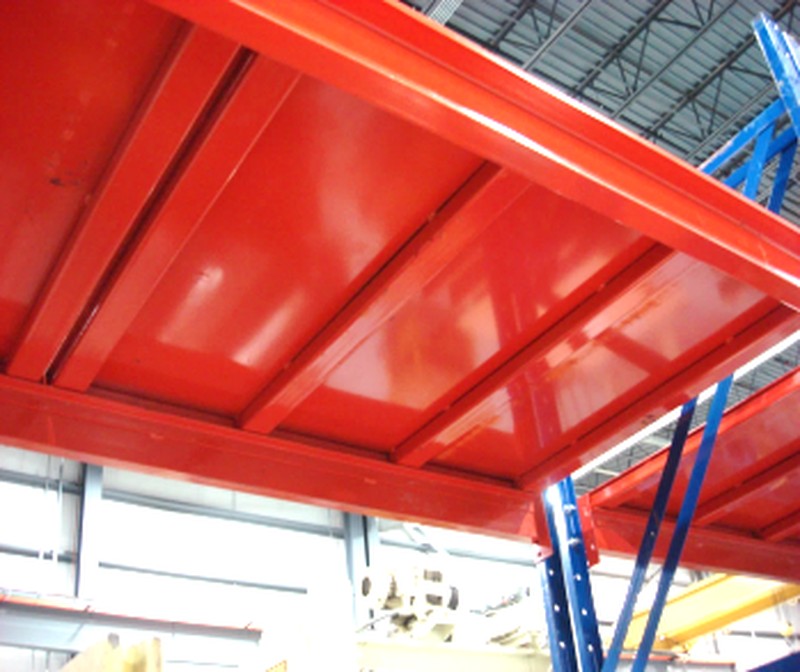

SOLID
